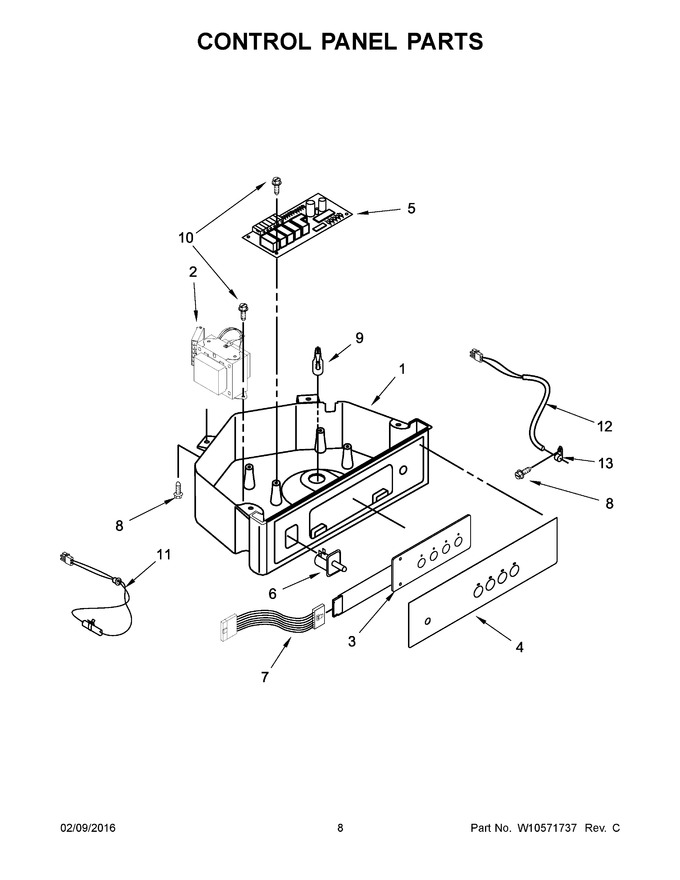

05 - Control Panel Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10340993 | Box, Control |
|
- | |||||
| 2 | WP2310139 | Transformer (Replaces: 2310139) |
|
$ 290.03 | |||||
| 3 | W10562035 | Assembly, Switch (also Order #4) |
|
- | |||||
| 4 | W10282108 | Overlay |
|
- | |||||
| 5 | WPW10226156 | Board, Control (Replaces: W10226156) |
|
Immediately | $ 356.72 | ||||
| 6 | WP2149705 | Switch, Plunger (Replaces: 2149705) |
|
Immediately | $ 41.09 | ||||
| 7 | 2187585 | Harness, Unit |
|
$ 55.36 | |||||
| 8 | WP3400884 | Screw (stainless) (Replaces: 3400884) |
|
$ 7.29 | |||||
| 9 | 745362 | Bulb |
|
- | |||||
| 10 | WP489443 | Screw (stainless) (Replaces: 3400850) |
|
Immediately | $ 7.50 | ||||
| 11 | WP2313635 | Thermistor, Ice Control (Replaces: 2313635) |
|
$ 89.96 | |||||
| 12 | WPW10503764 | Thermostat, Bin (Replaces: W10503764) |
|
$ 112.71 | |||||
| 13 | 2185825 | Clamp |
|
- |
