SELECT A DIAGRAM

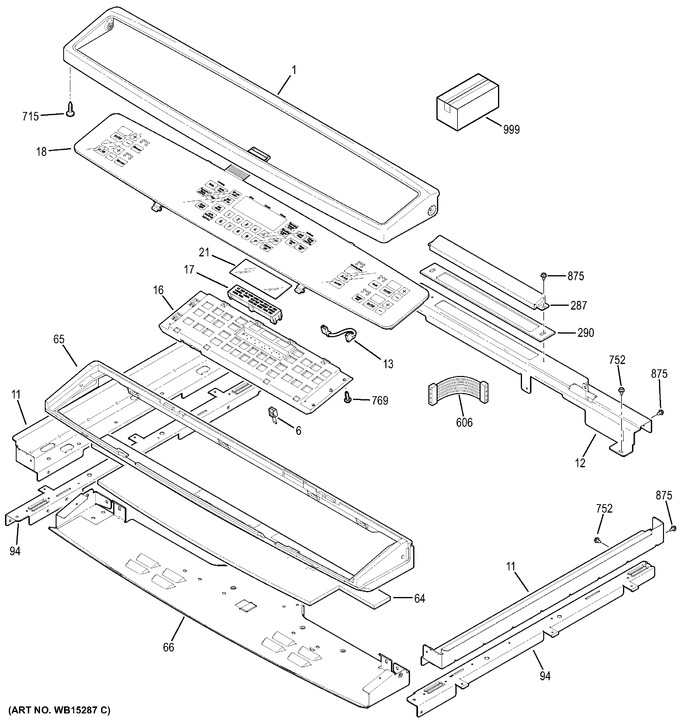

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Warming Drawer


5 - Door


6 - Door Lock


7 - Convection Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	229C6311P001		Label Wire Diagram		Appelez-nous	-
1	WB36T11353		Trim Cntl & Gasket Asm		Appelez-nous	-
6	WB02T10548		Plug Asm Model Selector		Appelez-nous	-
11	WB07X20967		Extension Side Rt		Appelez-nous	-
11	WB07T10721		Extension Side Lt		Appelez-nous	-
12	WB02T10552		Bracket Trim Supt		Appelez-nous	-
13	WB18T10506		Jumper		Appelez-nous	-
16	WB27X21393		Control Ui Asm		Appelez-nous	-
17	WG02A00943		Guide & Overlay Asm   (Replaces: WB27T11121)				$ 24.78
18	WB27X21439		Glass Cntl & Board Asm				$ 218.90
21	WG02F05912		Filter Clock Display   (Replaces: WB27T11116)				$ 11.39
64	WB35T10241		Insulation Enclosure		Appelez-nous	-
65	WB56X21467		Panel Control		Appelez-nous	-
66	WB34X21500		Enclosure Control		Appelez-nous	-
94	WB02X21498		Brace Chassis Sc Rt		Appelez-nous	-
94	WB02X21499		Brace Chassis Sc Lt		Appelez-nous	-
287	WB38T10038		Barrier Vent Rear		Appelez-nous	-
290	WB04T10081		Gasket Vent Barrier		Appelez-nous	-
606	WB18T10437		Ribbon Cable Wing Board		Appelez-nous	-
715	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
769	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
875	WZ4X245D		Screw-pkg 12		Appelez-nous	-
999	49-80665		Pm Owners Manual		Appelez-nous	-
999	49-80630		Pm Guide Mini		Appelez-nous	-
999	31-10769		Pm Instructions Install		Appelez-nous	-
999	31-10781		Pm Install Instructions		Appelez-nous	-
999	31-17060		Pm Manual Mini & Wd Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
