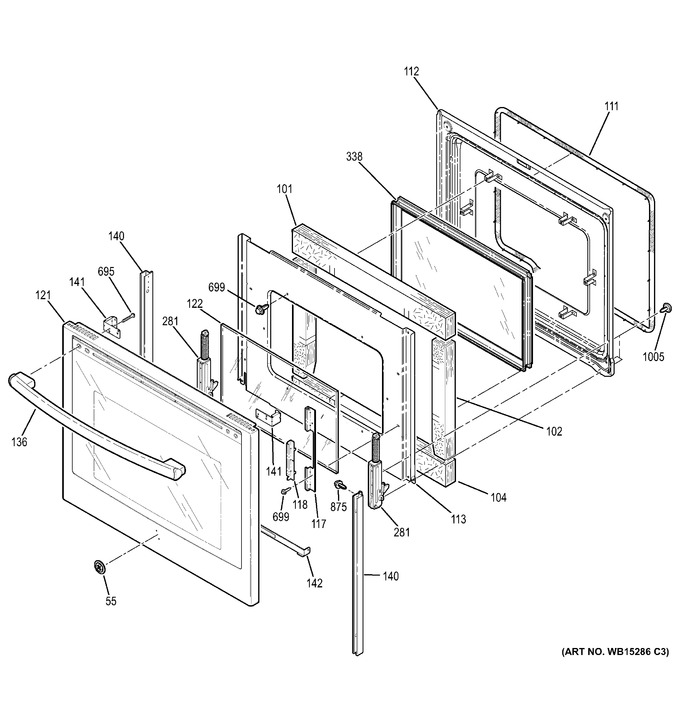

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
55	WS01A01830		Badge Ge   (Replaces: WB02T10589)				$ 12.86
101	WB35T10134		Insulation Door		Appelez-nous	-
102	WB35T10135		Insulation Door		Appelez-nous	-
104	WB35T10255		Insulation Door		Appelez-nous	-
111	WB04T10079		Gasket Oven		Appelez-nous	-
112	WB55T10203		Liner Oven Door Asm (bk)		Appelez-nous	-
113	WB56T10178		Retainer Ovn Dr Insln		Appelez-nous	-
117	WB56T10320		Retainer Glass Ovn Dr		Appelez-nous	-
118	WB56T10321		Retainer Glass Ovn Dr		Appelez-nous	-
121	WB56X21493		Panel Asm Bonded (ss)		Appelez-nous	-
122	WG02L00696		Glass Ovn Dr Inr   (Replaces: WB57T10233)			Immediately	$ 180.05
136	WS01L15020		Handle And End Cap Asm   (Replaces: WB15T10222)			Immediately	$ 61.96
140	WB56X23306		Frame Door Side Asm Rh		Appelez-nous	-
140	WB56X23305		Frame Door Side Asm Lh		Appelez-nous	-
141	WB02T10611		Bracket Offset Hdl (he)		Appelez-nous	-
142	WB02X21494		Glass Bracket		Appelez-nous	-
281	WG02L02119		Hinge Door   (Replaces: WB10T10067)				$ 108.72
338	WG02A01873		Pack Window Asm   (Replaces: WB55T10191)			Immediately	$ 130.91
695	WB01T10132		Screw 10-32 Hex 1 3/4 In		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
875	WZ4X245D		Screw-pkg 12		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
