View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Cooktop
3 - Body Parts
4 - Warming Drawer
5 - Door
6 - Door Lock
7 - Convection Fan
SELECT A DIAGRAM
New Model Search:

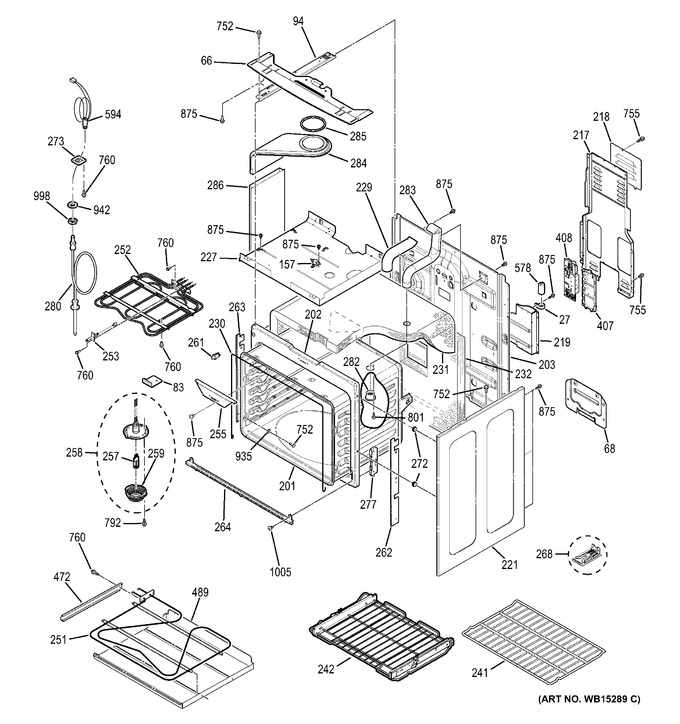

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 27 | WB02T10533 | Bracket Capacitior |
|
- | |||||
| 66 | WB34X21500 | Enclosure Control |
|
- | |||||
| 68 | WB02X21423 | Plate Cover (bk) |
|
- | |||||
| 83 | WB02T10118 | Clip Seam Oven Body |
|
- | |||||
| 94 | WB02X21499 | Brace Chassis Sc Lt |
|
- | |||||
| 94 | WB02X21498 | Brace Chassis Sc Rt |
|
- | |||||
| 157 | WB24T10164 | Switch High Limit |
|
- | |||||
| 201 | WB63X20923 | Body Ovn Weld Asm (bk) |
|
- | |||||
| 202 | WB63X20115 | Frame Front 5.0 (bk) |
|
- | |||||
| 203 | WB63X20922 | Back Main |
|
- | |||||
| 217 | WB34X21502 | Cover Wire Main |
|
- | |||||
| 218 | WB02T10560 | Cover Terminal Block |
|
- | |||||
| 219 | WB34X21503 | Bracket Cntl Brd |
|
- | |||||
| 221 | WB63T10166 | Panel Side (dg) |
|
- | |||||
| 227 | WB34X21504 | Retainer Insulation Asm |
|
- | |||||
| 229 | WB35T10017 | Vent Tube Insulation |
|
- | |||||
| 230 | WB02T10252 | Wire Insln Ovn |
|
- | |||||
| 231 | WB35T10242 | Insulation Oven |
|
- | |||||
| 232 | WB35X23540 | Insulation Ovn Bck & Btm |
|
- | |||||
| 241 | WG02L02305 | Rack Oven (sc) (Replaces: WB48T10082) |
|
$ 120.98 | |||||
| 242 | WB48X20881 | Rack Oven Slide Asm (bk) |
|
- | |||||
| 251 | WG02A04510 | Unit Asm (Replaces: WB44T10104) |
|
Immediately | $ 114.58 | ||||
| 252 | WB44X20882 | Shield Broil Asm |
|
- | |||||
| 253 | WS01F02431 | Sensor Asm (Replaces: WB21T10007) |
|
Immediately | $ 27.18 | ||||
| 255 | WB07X21426 | Trim Latch |
|
- | |||||
| 257 | WG02F04932 | Lamp Halogen G9 (Replaces: WB08T10045) |
|
Immediately | $ 27.16 | ||||
| 258 | WB25T10097 | Lamp Halogen Asm |
|
- | |||||
| 259 | WB25T10013 | Ov Lamp Lens |
|
- | |||||
| 261 | WG02F04509 | Switch Spdt High Amp (Replaces: WB24T10147) |
|
$ 27.16 | |||||
| 262 | WB07T10712 | Trim Vertical Sde |
|
- | |||||
| 263 | WB07T10713 | Trim Vertical Sde |
|
- | |||||
| 264 | WB07T10516 | Trim Frt Frm (bk) |
|
- | |||||
| 268 | WB02T10578 | Bracket Anti-tip Asm |
|
- | |||||
| 272 | WG02L01603 | Side Panel Support (Replaces: WB02T10034) |
|
$ 4.20 | |||||
| 273 | WB34K5140 | Probe Cover |
|
- | |||||
| 277 | WG02L01595 | Hinge Receiver (Replaces: WB10T10068) |
|
$ 57.33 | |||||
| 280 | WG02F05721 | Meat Probe (Replaces: WB20T10024) |
|
Immediately | $ 63.86 | ||||
| 282 | WB34X24604 | Vent Tube Asm |
|
- | |||||
| 283 | WB38T10039 | Tube Vnt Single |
|
- | |||||
| 284 | WB02T10594 | Duct Upper Asm |
|
- | |||||
| 285 | WB02T10591 | Gasket Foam Tape |
|
- | |||||
| 286 | WB02T10484 | Duct Side Asm |
|
- | |||||
| 407 | WB02T10512 | Frame Board Relay |
|
- | |||||
| 408 | WB27X20891 | Board Pcb Asm |
|
- | |||||
| 472 | WB49T10007 | Side Reflector |
|
- | |||||
| 489 | WB02T10509 | Reflector Pane Bake Elem |
|
- | |||||
| 578 | WG02F00227 | Capacitor Motor (Replaces: WB27T10662) |
|
$ 25.73 | |||||
| 594 | WG02A00716 | Harness Wire Probe (Replaces: WB18T10394) |
|
$ 66.21 | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 755 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 792 | WB01T10072 | Scr 10-16 Ab Ihw .625 Ni |
|
- | |||||
| 801 | WB01X21497 | Scr 10-16 Ab Trt20 1/2 B |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 875 | WZ4X245D | Screw-pkg 12 |
|
- | |||||
| 935 | WB1X1256 | Washer Spring |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 998 | WG02A00927 | Nut Meat Probe (Replaces: WB1X5572) |
|
$ 67.26 | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 |
