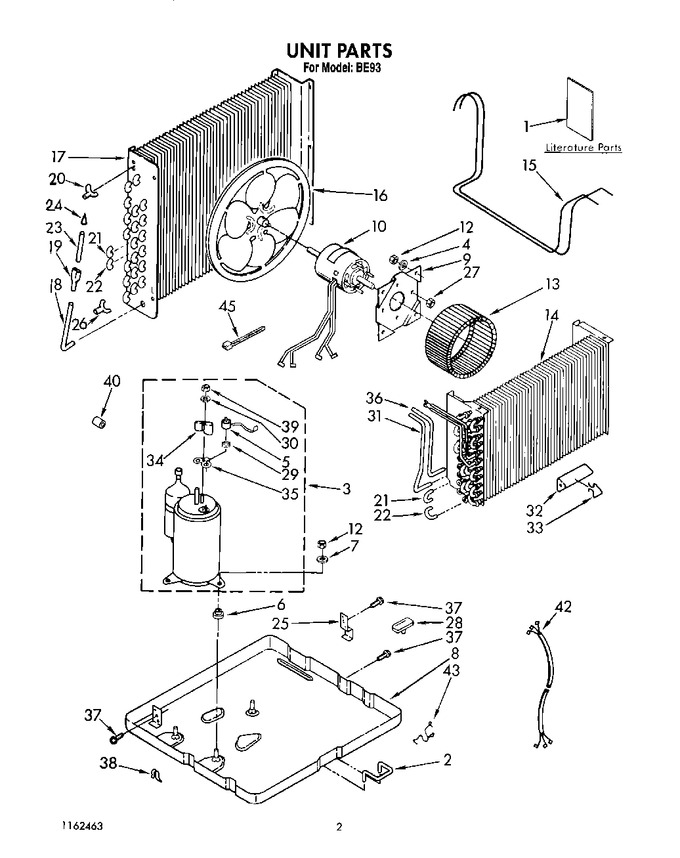

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1160245 | Sheet, Tech |
|
- | |||||
| 1 | LIT1160244 | Wiring, Diagram |
|
- | |||||
| 1 | LIT1162430 | Guide, Operation |
|
- | |||||
| 1 | LIT1161999 | Instructons, Installation |
|
- | |||||
| 1 | LIT1162463 | List, Repair Parts |
|
- | |||||
| 2 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 3 | 819118 | Compressor Assembly |
|
- | |||||
| 4 | 470280 | Washer (4) |
|
- | |||||
| 5 | 1156038 | Overload |
|
- | |||||
| 6 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 7 | 489108 | Washer (3) |
|
- | |||||
| 8 | 950066 | Base |
|
- | |||||
| 9 | 998024 | Plate, Fan Motor |
|
- | |||||
| 10 | 1160732 | Motor, Fan |
|
- | |||||
| 12 | 858122 | Nut, Lock |
|
- | |||||
| 13 | 859495 | Wheel, Blower |
|
- | |||||
| 14 | 950174 | Evaporator |
|
- | |||||
| 15 | 951539 | Tube, Restrictor (2) (33.0`` Length) |
|
- | |||||
| 16 | 859496 | Blade, Fan |
|
- | |||||
| 17 | 951538 | Condenser |
|
- | |||||
| 18 | 950814 | Tube, 90~ Connect |
|
- | |||||
| 19 | 947364 | Tube, Flow Divider |
|
- | |||||
| 20 | 476078 | Bend, Return (3-way) |
|
- | |||||
| 21 | 855199 | Bend, Return Condenser (22) Evaporator (15) |
|
- | |||||
| 22 | 854624 | Bend, Return Condenser (4) Evaporator (4) |
|
- | |||||
| 23 | 951437 | Tube, Outlet (includes No.24) |
|
- | |||||
| 24 | 49599 | Strainer, Tube |
|
- | |||||
| 25 | 647824 | Condenser, Support (r.s.) |
|
- | |||||
| 26 | 953169 | Bend, Return (3-way) |
|
- | |||||
| 27 | WP488130 | Nut, Hex (Replaces: 488130) |
|
$ 6.59 | |||||
| 28 | 647850 | Cup, Condensate |
|
- | |||||
| 29 | 950032 | Spring, Overload |
|
- | |||||
| 30 | 950037 | Gasket, Nut |
|
- | |||||
| 31 | 993755 | Tube, Outlet |
|
- | |||||
| 32 | 484238 | Anticipator, Temperature |
|
- | |||||
| 33 | 642080 | Clip, Anticipator |
|
- | |||||
| 34 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 35 | WP950035 | Gasket, Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 36 | 993756 | Tube, Outlet |
|
- | |||||
| 37 | WP489069 | Screw, Sheet Metal No.8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 38 | 642684 | Clamp, Restrictor Tube |
|
- | |||||
| 39 | WP950027 | Nut, Mtg. (Replaces: 950027) |
|
$ 5.20 | |||||
| 40 | WP854334 | Seal, Discharge Tube (Replaces: 854681) |
|
$ 12.55 | |||||
| 42 | 484136 | Harness, Wiring |
|
- | |||||
| 43 | 949634 | Clip, Cabinet Front (2) |
|
- | |||||
| 45 | WPW10339879 | Wire, Tie (Replaces: 612805) |
|
$ 7.47 |
