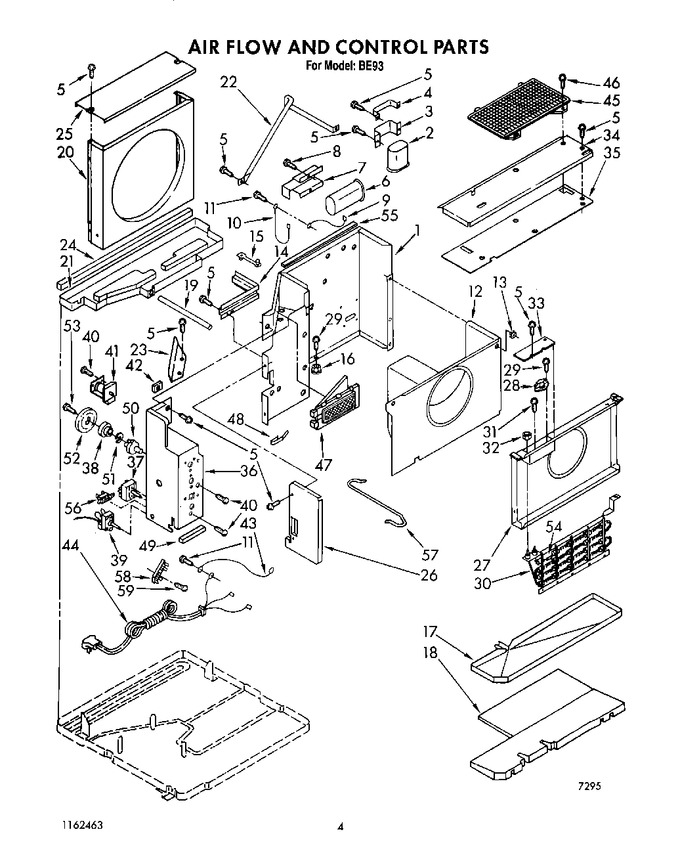

SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Air Flow And Control


04 - Cabinet And Front Panel


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998003		Wall, Dividing		Appelez-nous	-
2	999785		Capacitor, Running		Appelez-nous	-
3	852992		Bracket, Running Capacitor		Appelez-nous	-
4	475844		Bracket, Running Capacitor		Appelez-nous	-
5	WP489069		Screw, Sheet Metal No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	999757		Capacitor, Fan		Appelez-nous	-
7	998009		Bracket, Fan Capacitor		Appelez-nous	-
8	WP488729		Screw, Sheet Metal No.8 X 3/8b   (Replaces: 488979)			Immediately	$ 7.45
9	998010		Wire, Ground		Appelez-nous	-
10	948285		Wire, Ground		Appelez-nous	-
11	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
12	852875		Housing, Blower Wheel		Appelez-nous	-
13	487808		Fastener, Snap		Appelez-nous	-
14	852317		Channel, Wiring		Appelez-nous	-
15	948279		Clip, Wiring		Appelez-nous	-
16	853831		Clip, Speed		Appelez-nous	-
17	853268		Pan, Evaporator Condensate		Appelez-nous	-
18	853269		Insulation, Condensate Pan		Appelez-nous	-
19	465777		Tube, Condensate		Appelez-nous	-
20	853356		Shroud, Condenser		Appelez-nous	-
21	853391		Pan, Condenser Condensate		Appelez-nous	-
22	852318		Support, Unit		Appelez-nous	-
23	857256		Guide, Wire		Appelez-nous	-
24	853329		Seal, Condenser Pan		Appelez-nous	-
25	853390		Cover, Shroud (condenser)		Appelez-nous	-
26	852994		Wall, Dividing L.s.		Appelez-nous	-
27	857224		Deflector, Heat Assembly		Appelez-nous	-
28	995674		Switch, Limit		Appelez-nous	-
29	488624		Screw, Sheet Metal No.8 X 3/8a		Appelez-nous	-
30	1158583		Heater, Air		Appelez-nous	-
31	WP488234		Screw, Machine 8-32 X 1/4   (Replaces: 488777)				$ 6.37
32	WP488826		Nut, Hex 10-32 (2)   (Replaces: 487735)				$ 5.88
33	857203		Cover, Wire Enclosure		Appelez-nous	-
34	948227		Cover, Shroud (evaporator)		Appelez-nous	-
35	948410		Insulation, Evaporator Cover		Appelez-nous	-
36	1160409		Box, Control		Appelez-nous	-
37	1160355		Switch, Rotary		Appelez-nous	-
38	647879		Bushing, Shaft		Appelez-nous	-
39	1155806		Control, Temperature		Appelez-nous	-
40	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
41	858771		Contactor		Appelez-nous	-
42	647865		Grommet, Wiring		Appelez-nous	-
43	857634		Ground, Wire		Appelez-nous	-
44	649125		Cable, Appliance		Appelez-nous	-
45	997949		Guard, Impeller		Appelez-nous	-
46	WP488729		Screw, No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
47	649720		Door, Exhaust		Appelez-nous	-
48	859369		Spring, Door		Appelez-nous	-
49	WP854334		Seal, Panel   (Replaces: 949379)				$ 12.55
50	852023		Shaft, Control		Appelez-nous	-
51	00647881		Spring, Washer   (Replaces: 647881)				$ 366.51
52	647882		Cam, Control		Appelez-nous	-
53	489092		Screw, 8-16 X 5/8		Appelez-nous	-
54	876903		Fuse, Heater		Appelez-nous	-
55	WP854334		Seal, Flange   (Replaces: 950155)				$ 12.55
56	950529		Switch, Sliding		Appelez-nous	-
57	859370		Wire, Control		Appelez-nous	-
58	855634		Board, Terminal		Appelez-nous	-
59	488966		Screw No.6 X 3/8		Appelez-nous	-
