SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Air Flow And Control

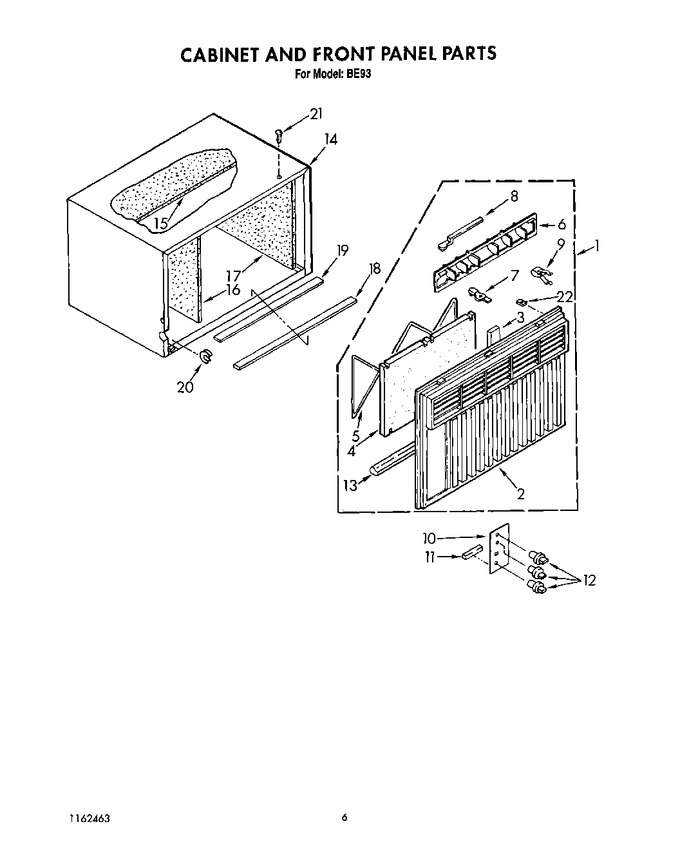

04 - Cabinet And Front Panel


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1160230		Front Assembly, Cabinet (complete)		Appelez-nous	-
2	1160231		Frame, Front		Appelez-nous	-
3	WP854334		Seal, Front (top)   (Replaces: 647913)				$ 12.55
3	647914		Seal, Front (middle)		Appelez-nous	-
4	648008		Filter, Air		Appelez-nous	-
5	476707		Retainer, Filter		Appelez-nous	-
6	953068		Louver, Vertical		Appelez-nous	-
7	953159		Handle, Louver		Appelez-nous	-
8	953067		Link, Louver (2)		Appelez-nous	-
9	641484		Spring, Clip (2)				$ 150.14
10	1160235		Plate, Escutcheon		Appelez-nous	-
11	470036		Spacer, Escutcheon (3)		Appelez-nous	-
12	953054		Knob, Control (3)		Appelez-nous	-
13	649198		Seal		Appelez-nous	-
14	1161146		Cabinet		Appelez-nous	-
15	649973		Insulation, Top		Appelez-nous	-
16	857271		Insulation, Cabinet (l.s.)		Appelez-nous	-
17	647847		Insulation, Right Side		Appelez-nous	-
18	WP854334		Gaskets (side (2))   (Replaces: 853373)				$ 12.55
18	WP854334		Gaskets (top)   (Replaces: 853372)				$ 12.55
18	WP854334		Gaskets (bottom)   (Replaces: 853594)				$ 12.55
19	647854		Seal, Bottom		Appelez-nous	-
20	647849		Grommet		Appelez-nous	-
21	1157141		Screw, Front (2)		Appelez-nous	-
22	1157140		Clip, Front (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
