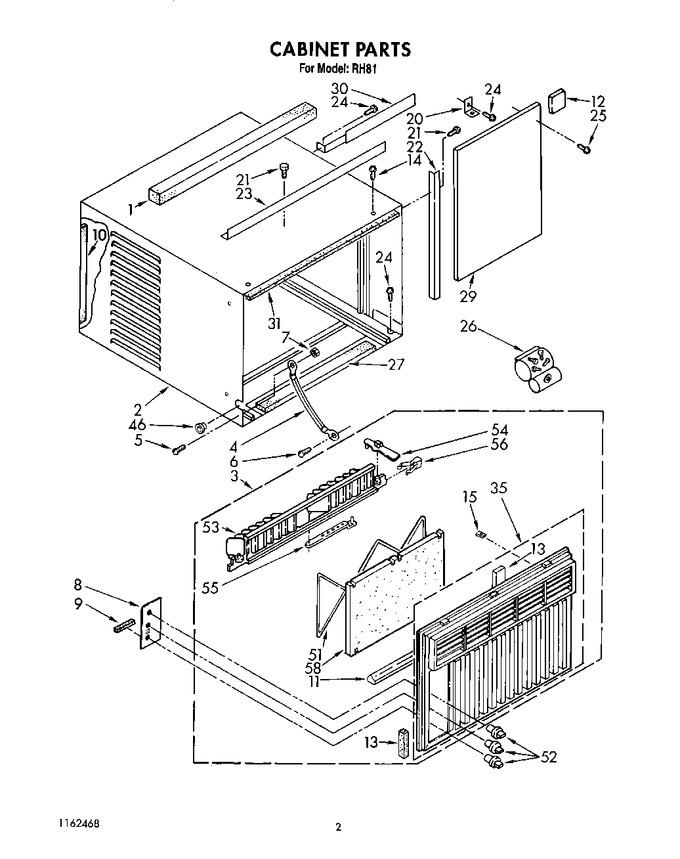

02 - Cabinet
03 - Unit, Lit/optional
04 - Air Flow And Control
05 - Installation
06 - Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 469877 | Seal, Meeting Rail |
|
- | |||||
| 2 | 1157350 | Cabinet |
|
- | |||||
| 3 | 1160230 | Front Assembly, Cabinet (complete) |
|
- | |||||
| 4 | 857017 | Wire, Ground |
|
- | |||||
| 5 | 488853 | Screw, Mach 8-32 X 3/8 |
|
- | |||||
| 6 | 488854 | Screw, 8 X 3/8 |
|
- | |||||
| 7 | WP486255 | Nut, Hex 8-32 (Replaces: 486529) |
|
$ 5.82 | |||||
| 8 | 1160235 | Escutcheon, Plate |
|
- | |||||
| 9 | 470036 | Spacer, Escutcheon Plate (3) |
|
- | |||||
| 10 | WP854334 | Seal, Cabinet (back) (Replaces: 858839) |
|
$ 12.55 | |||||
| 11 | 647914 | Seal, Louver (bottom) |
|
- | |||||
| 11 | WP854334 | Seal, Louver (top) (Replaces: 647913) |
|
$ 12.55 | |||||
| 12 | 995274 | Spacer Block, Filler Board |
|
- | |||||
| 13 | 649198 | Seal, Controls (right Side) |
|
- | |||||
| 14 | 1157141 | Screw, Front (2) |
|
- | |||||
| 15 | 1157140 | Clip, Front (2) |
|
- | |||||
| 20 | 644228 | Bracket |
|
- | |||||
| 21 | WP308685 | Screw, 10 X 1/2 (3) (Replaces: 488720) |
|
Immediately | $ 7.08 | ||||
| 22 | 645564 | Angle, Side (2) |
|
- | |||||
| 23 | 644380 | Channel, Top |
|
- | |||||
| 24 | 488255 | Screw, 8 X 3/4 |
|
- | |||||
| 25 | WP965173 | Screw, 8 X 3/8 (Replaces: 488017) |
|
Immediately | $ 10.68 | ||||
| 26 | 993823 | Bag, Accessory |
|
- | |||||
| 27 | 647854 | Seal |
|
- | |||||
| 29 | 647835 | Board, Filler |
|
- | |||||
| 30 | 645563 | Bracket, L.s. |
|
- | |||||
| 30 | 645562 | Bracket, R.s. |
|
- | |||||
| 31 | 950157 | Insulation, Cabinet (top) |
|
- | |||||
| 31 | 647847 | Insulation, Cabinet (right Side) |
|
- | |||||
| 31 | 647848 | Insulation, Cabinet (left Side) |
|
- | |||||
| 35 | 1160231 | Front, Cabinet |
|
- | |||||
| 46 | 647849 | Grommet |
|
- | |||||
| 51 | 476707 | Retainer, Filter |
|
- | |||||
| 52 | 953054 | Knob, Control (3) |
|
- | |||||
| 53 | 647798 | Louver, Vertical |
|
- | |||||
| 54 | 644165 | Handle, Vertical Louver (2) |
|
- | |||||
| 55 | 647799 | Link, Vertical Louver (2) |
|
- | |||||
| 56 | 641484 | Detent Spring (2) |
|
$ 150.14 | |||||
| 58 | 648008 | Filter, Air |
|
- |
