SELECT A DIAGRAM

02 - Cabinet


03 - Unit, Lit/optional

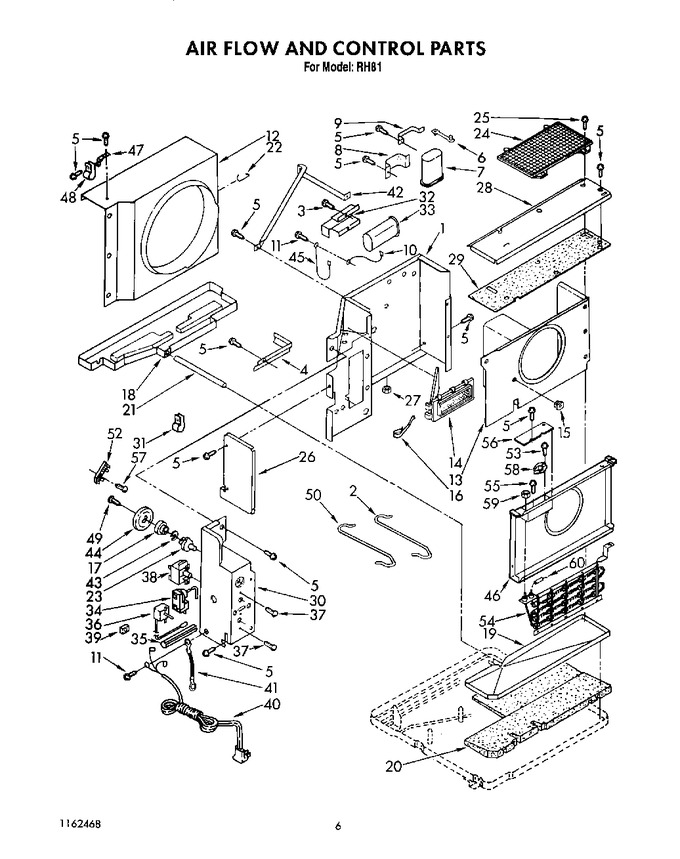

04 - Air Flow And Control


05 - Installation


06 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998003		Wall, Dividing		Appelez-nous	-
2	857256		Guide, Wire		Appelez-nous	-
3	488481		Screw, Sm No.10 X 3/8 Oversized		Appelez-nous	-
3	WP488729		Screw, S.m. No.8 X 3/8 (2)   (Replaces: 488979)			Immediately	$ 7.45
4	852317		Channel, Wiring		Appelez-nous	-
5	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	648791		Clamp, Cable		Appelez-nous	-
7	952382		Capacitor, Running		Appelez-nous	-
8	475844		Bracket, Capacitor		Appelez-nous	-
9	852992		Bracket, Capacitor		Appelez-nous	-
10	948285		Wire, Ground		Appelez-nous	-
11	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
12	647862		Shroud, Condenser		Appelez-nous	-
13	852875		Housing, Wheel		Appelez-nous	-
14	649720		Door, Exhaust		Appelez-nous	-
15	487808		Fastener, Snap (2)		Appelez-nous	-
16	859369		Spring, Door		Appelez-nous	-
17	647879		Bushing, Shaft		Appelez-nous	-
18	852993		Pan, Condensate Condenser		Appelez-nous	-
19	853268		Pan, Condensate Evaporator		Appelez-nous	-
20	853269		Insulation, Pan		Appelez-nous	-
21	49181		Tube, Condensate		Appelez-nous	-
22	647873		Retainer, Shroud (3)		Appelez-nous	-
23	852023		Shaft, Control		Appelez-nous	-
24	997949		Guard, Impeller		Appelez-nous	-
25	WP488729		Screw, Sm No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
26	852994		Wall, Dividing L.s.		Appelez-nous	-
27	853831		Clip, Speed		Appelez-nous	-
28	948227		Cover, Evaporator		Appelez-nous	-
29	948410		Insulation, Cover		Appelez-nous	-
30	1160409		Box, Control		Appelez-nous	-
31	947072		Clamp, Wiring		Appelez-nous	-
32	998009		Bracket, Fan Capacitor		Appelez-nous	-
33	999757		Capacitor, Fan Motor		Appelez-nous	-
34	1159836		Control, Outside Temperature		Appelez-nous	-
35	475841		Sleeve, Insulation (temp. Control)		Appelez-nous	-
36	1155808		Control, Temperature		Appelez-nous	-
37	488734		Screw, Mach 6-32 X .175		Appelez-nous	-
38	1160355		Switch, Rotary		Appelez-nous	-
39	647865		Grommet, Wiring		Appelez-nous	-
40	648535		Cable, Appliance		Appelez-nous	-
41	857634		Wire, Ground		Appelez-nous	-
42	852318		Support, Unit		Appelez-nous	-
43	00647881		Washer, Spring   (Replaces: 647881)				$ 366.51
44	647882		Cam, Shaft		Appelez-nous	-
45	998010		Wire, Ground		Appelez-nous	-
46	857224		Deflector, Heat		Appelez-nous	-
47	947321		Bracket, Tube Support		Appelez-nous	-
48	43996		Clamp, Discharge Tube		Appelez-nous	-
49	489092		Screw, 7-18 X 5/8		Appelez-nous	-
50	859370		Wire, Control (red)		Appelez-nous	-
52	855634		Board, Terminal		Appelez-nous	-
53	488624		Screw, 8 X 13/16 (2)		Appelez-nous	-
54	951818		Heater, Air		Appelez-nous	-
55	WP488234		Screw, 8-32 X 1/4   (Replaces: 488777)				$ 6.37
56	857203		Cover, Wire		Appelez-nous	-
57	488966		Screw No.6 X 3/8		Appelez-nous	-
58	997418		Switch, Limit		Appelez-nous	-
59	WP488826		Nut, Hex 10-32 (2)   (Replaces: 487735)				$ 5.88
60	977558		Fuse, Heater		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
