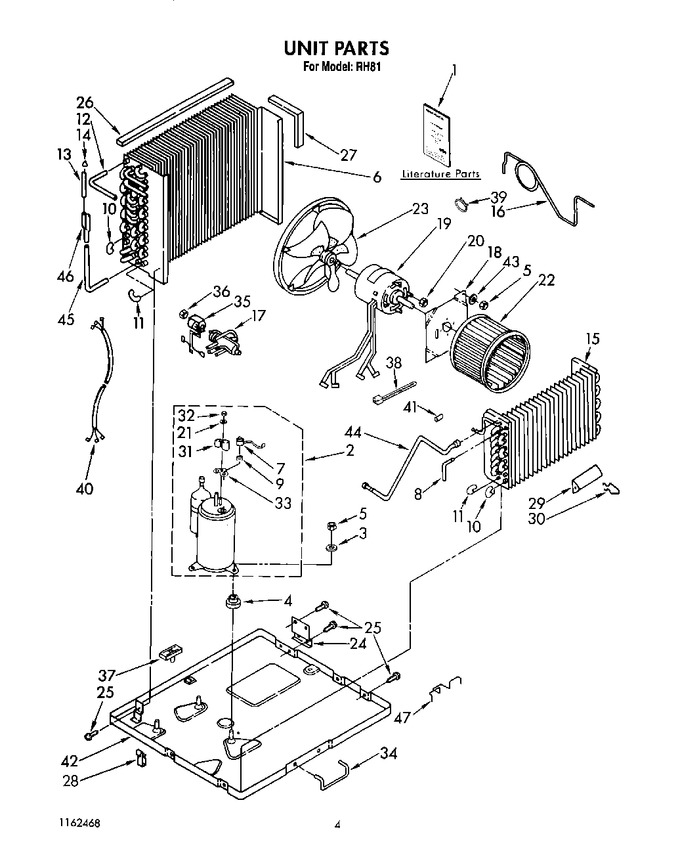

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1161426 | Sheet, Tech |
|
- | |||||
| 1 | LIT1161425 | Wiring Daigram |
|
- | |||||
| 1 | LIT1162435 | Operation Guide |
|
- | |||||
| 1 | LIT1162468 | List, Repair Parts |
|
- | |||||
| 2 | 813556 | Compressor |
|
- | |||||
| 3 | 489108 | Washer (3) |
|
- | |||||
| 4 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 5 | 858122 | Locknut (3) |
|
- | |||||
| 6 | 951449 | Condenser |
|
- | |||||
| 7 | 951454 | Overload |
|
- | |||||
| 8 | 647949 | Tube, 90~ Connect |
|
- | |||||
| 9 | 950032 | Spring, Overload |
|
- | |||||
| 10 | 855199 | Bend, Return Condenser (18) Evaporator (5) |
|
- | |||||
| 11 | 854624 | Bend, Return Condenser (4) Evaportor (6) |
|
- | |||||
| 12 | 475635 | Tube, 90~ Connect |
|
- | |||||
| 13 | 950850 | Tube, Strainer Assembly (includes Illus. 14) |
|
- | |||||
| 14 | 49599 | Strainer |
|
- | |||||
| 15 | 951446 | Evaporator |
|
- | |||||
| 16 | 951448 | Tube, Restrictor (length 26.5``) |
|
- | |||||
| 17 | 467396 | Valve, Reversing |
|
- | |||||
| 18 | 998024 | Plate, Fan Motor |
|
- | |||||
| 19 | 947785 | Motor, Fan |
|
- | |||||
| 20 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 21 | 950037 | Washer |
|
- | |||||
| 22 | 859495 | Wheel, Blower |
|
- | |||||
| 23 | 859496 | Blade, Fan |
|
- | |||||
| 24 | 647824 | Condenser, Support (r.s.) |
|
- | |||||
| 25 | WP489069 | Screw, Sm No.8 X 1/2a (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 26 | 649609 | Seal |
|
- | |||||
| 27 | 649610 | Seal |
|
- | |||||
| 28 | 642684 | Clamp, Tube |
|
- | |||||
| 29 | 475573 | Anticipator, Temperature |
|
- | |||||
| 30 | 475577 | Clip, Anticipator |
|
- | |||||
| 31 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 32 | WP950027 | Nut, Hex (Replaces: 950027) |
|
$ 5.20 | |||||
| 33 | WP950035 | Gasket, Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 34 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 35 | 852978 | Coil, Solenoid |
|
- | |||||
| 36 | WP488826 | Nut, Hex 10-32 (Replaces: 487735) |
|
$ 5.88 | |||||
| 37 | 647850 | Cup, Condensate |
|
- | |||||
| 38 | WPW10339879 | Cable Tie (Replaces: 857547) |
|
$ 7.47 | |||||
| 39 | 855930 | Clamp, Tube |
|
- | |||||
| 40 | 484136 | Harness, Wiring |
|
- | |||||
| 41 | 474013 | Strainer |
|
- | |||||
| 42 | 951381 | Base |
|
- | |||||
| 43 | 470280 | Washer |
|
- | |||||
| 44 | 998355 | Muffler, Tube Assembly (includes Item 41) |
|
- | |||||
| 45 | 950814 | Tube, 90~ Connect |
|
- | |||||
| 46 | 947364 | Tube, Flow Divider |
|
- | |||||
| 47 | 949634 | Clip (2) |
|
- |
