SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

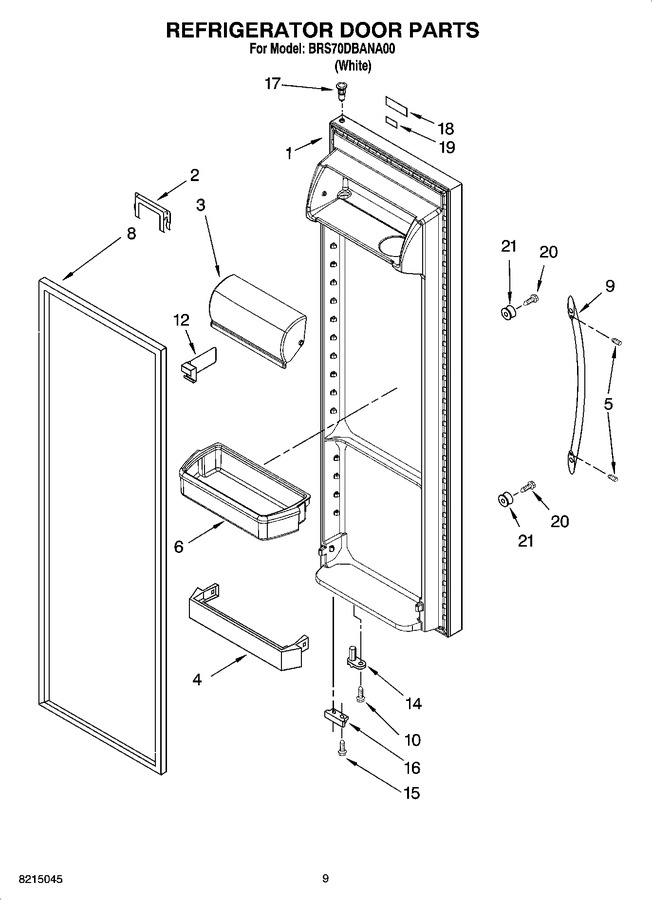

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2318370W		Refrigerator Door (includes Item 8)		Appelez-nous	-
2	2173643K		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 80.48
4	WP2318736		Trivet   (Replaces: 2223727)				$ 69.25
5	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 16.59
6	WPW10321304		Door Bin (3)   (Replaces: 2304235K)			Immediately	$ 40.46
8	2159075		Door Gasket, Magnetic (service)   (Replaces: 2221302)			Immediately	$ 299.70
9	WP2254600W		Handle   (Replaces: 2319729W)				$ 222.21
10	W10029760		Screw		Appelez-nous	-
12	2195496K		Divider, Bin		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
15	WP489483		Screw   (Replaces: W10029750)				$ 10.27
16	2321218W		Bracket, Door Stop		Appelez-nous	-
17	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.34
18	2321226		Nameplate, Brastemp		Appelez-nous	-
19	2321228		Nameplate, Side-by-side		Appelez-nous	-
20	W10029730		Screw		Appelez-nous	-
21	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.69

    View Diagram in Separate Window       Print Part List
