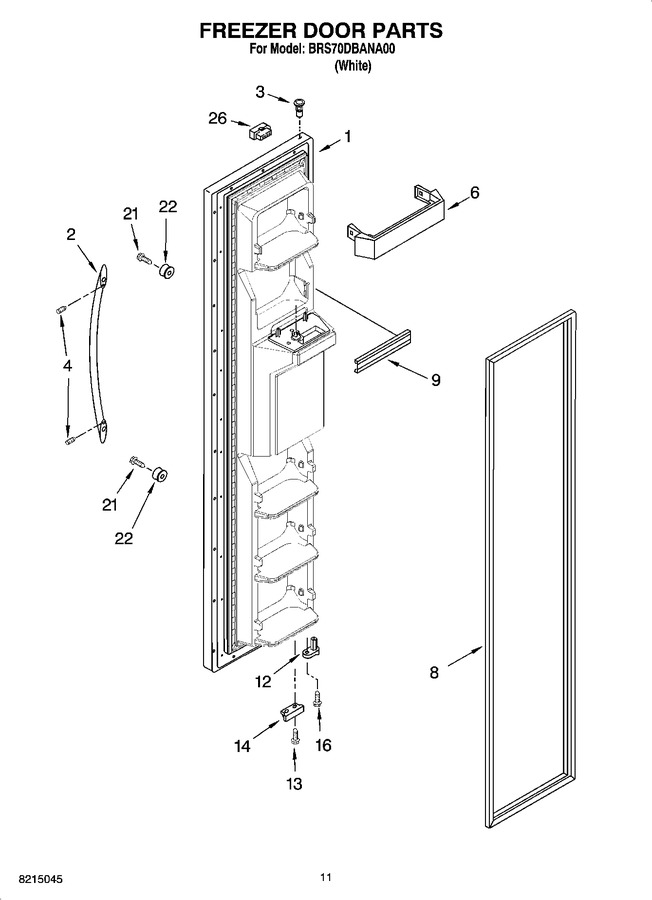

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2318372W | Freezer Door (includes Item 8 And Dispenser Front Parts) |
|
- | |||||
| 2 | WP2254600W | Handle (Replaces: 2319729W) |
|
$ 222.21 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 7.34 | |||||
| 4 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 6 | 2318292K | Trivet (4) |
|
- | |||||
| 8 | 2159074 | Door Gasket, Magnetic (service) (Replaces: 2221303) |
|
$ 293.13 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2209681) |
|
Immediately | $ 21.84 | ||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.48 | ||||
| 13 | WP489483 | Screw (Replaces: W10029750) |
|
$ 10.27 | |||||
| 14 | 2321218W | Bracket, Door Stop |
|
- | |||||
| 16 | W10029760 | Screw |
|
- | |||||
| 21 | W10029730 | Screw |
|
- | |||||
| 22 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.69 | ||||
| 26 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 22.35 |
