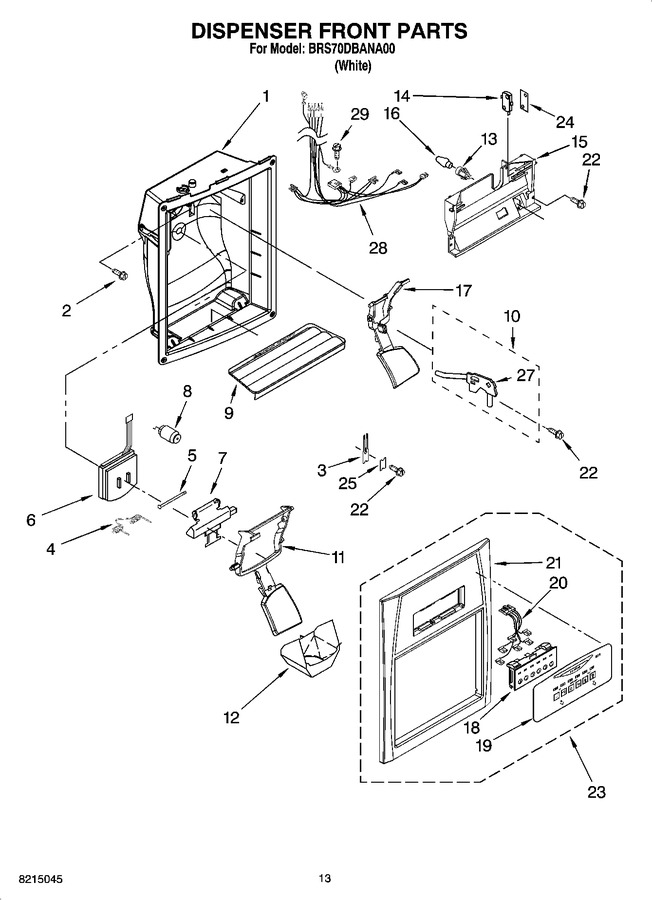

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11245710 | Screw (Replaces: W10029710) |
|
Immediately | $ 13.28 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.12 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 78.66 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 13.78 | |||||
| 6 | WP2180353 | Ice Door (Replaces: 2180353) |
|
Immediately | $ 24.15 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | WP2206670W | Grille Overflow (Replaces: 2206670W) |
|
$ 65.02 | |||||
| 10 | 2318280 | Water Fitting (includes Water Tube) |
|
- | |||||
| 11 | WP2255431W | Lever, Ice Dispenser (Replaces: 2255431W) |
|
$ 96.47 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.02 | ||||
| 13 | 2180200 | Lamp Holder |
|
$ 93.23 | |||||
| 14 | WP2162361 | Switch (4) (Replaces: 2162361) |
|
Immediately | $ 25.84 | ||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 24.27 | ||||
| 16 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 17 | WP2255432W | Lever, Water Dispenser (Replaces: 2255432W) |
|
$ 95.40 | |||||
| 20 | 2311650 | Wire Assembly (Replaces: 2187409) |
|
$ 84.74 | |||||
| 22 | W10029740 | Screw |
|
- | |||||
| 23 | W10139516 | Front Cover Assembly (includes Items 18, 19, 20 & 21) (Replaces: 2318375W) |
|
- | |||||
| 24 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.29 | |||||
| 27 | WP2304673 | Bracket, Water Tube (Replaces: 2318279) |
|
$ 14.74 | |||||
| 28 | 2311641 | Wire Harness, Control Mounting Bracket (Replaces: 2206601) |
|
- | |||||
| 29 | WP489464 | Screw (Replaces: W10029690) |
|
Immediately | $ 7.54 |
