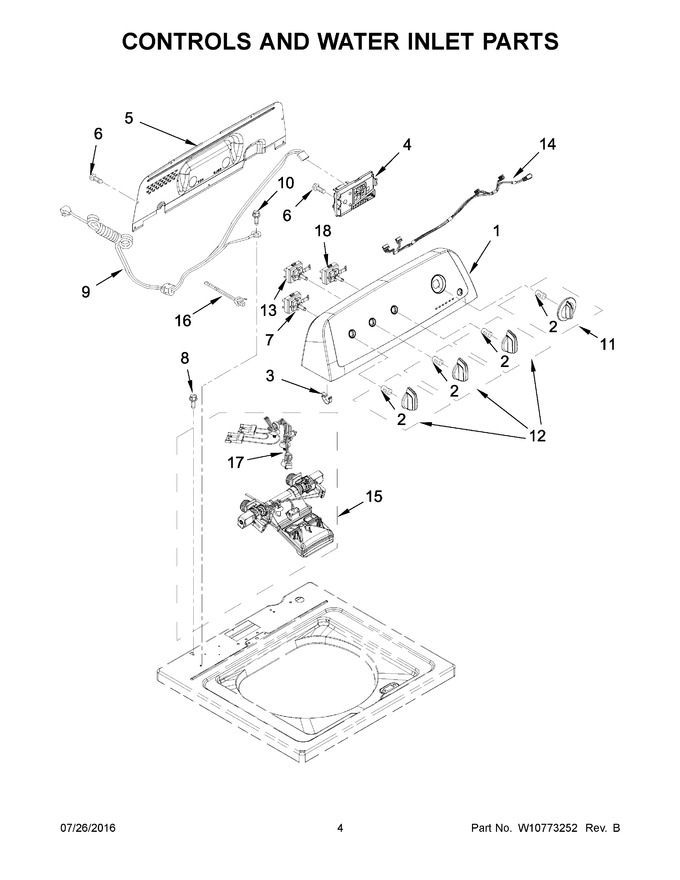

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10692532 | Panel, Console |
|
$ 345.03 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 4 | W11116527 | Control Unit Assembly, Machine And Motor (Replaces: W10711020) |
|
Immediately | $ 487.97 | ||||
| 5 | W10409320 | Panel, Console Rear Cover |
|
$ 237.41 | |||||
| 6 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 7 | W10859568 | Switch, Water Level (Replaces: W10414411) |
|
Immediately | $ 169.49 | ||||
| 8 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 9 | W10850133 | Cord, Power (Replaces: W10711784) |
|
Immediately | $ 121.53 | ||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 11 | WPW10711289 | Knob, Timer (white) (Replaces: W10711289) |
|
Immediately | $ 7.50 | ||||
| 12 | WPW10453947 | Knob, Control (white) (Replaces: W10453947) |
|
$ 49.28 | |||||
| 13 | WPW10414397 | Switch, Rotary Encoder (3 Position) (Replaces: W10414397) |
|
$ 122.49 | |||||
| 14 | W10291183 | Harness, Upper |
|
$ 140.44 | |||||
| 14 | W10694671 | Harness, Upper |
|
$ 171.54 | |||||
| 15 | W11210459 | Inlet Assembly, Water (Replaces: W10701459) |
|
Immediately | $ 94.50 | ||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 17 | W10678671 | Harness, Valve |
|
$ 166.83 | |||||
| 18 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 179.60 | |||||
| 18 | W10726817 | Push Button, Start |
|
- | |||||
| 19 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 179.60 |
