Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10793634 Dispenser Assembly   (Replaces: W10777969) In-Stock Immediately $ 72.51

1 W11024702 Dispenser, Fabric Softener   (Replaces: W10680192) Special Order $ 72.71

2 W10772621 Screw And Washer   (Replaces: W10003790) In-Stock Immediately $ 4.77

3 WP3949550 Washer   (Replaces: 3949550) In-Stock Immediately $ 9.98

4 W10521298 Basket Assembly Special Order $ 437.41

5 WPW10556325 Tub Ring   (Replaces: W10556325) In-Stock Immediately $ 183.74

6 W11397111 Impeller (washplate)   (Replaces: W10680215) In-Stock Immediately $ 161.46

7 WP8533953 Screw   (Replaces: 8533953) In-Stock Immediately $ 6.80

8 W10528947 Hub - Driven, Basket   (Replaces: W10396887) In-Stock Immediately $ 40.16

9 W11385424 Retainer, Drive Block   (Replaces: W10402178) In-Stock Immediately $ 11.67

10 W10324648 Tub   (Replaces: W10238301) Special Order $ 325.67

11 W10324647 Seal, Tub   (Replaces: W10006371) In-Stock Immediately $ 84.15

12 WPW10215093 Filter, Drain Pump   (Replaces: W10215093) Special Order $ 58.73

13 WP8533928 Screw   (Replaces: 8533928) In-Stock Immediately $ 7.43

14 W11682068 Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10821954) In-Stock Immediately $ 83.03

14 W10780044 Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10555290) In-Stock Immediately $ 136.12

15 W10560146 Ball, Suspension (set Of 4 - Includes Suspension Bushings) Appelez-nous -
15 W10836434 Barrel, Agitator   (Replaces: W10680216) Special Order $ 160.96

16 WPW10109200 Screw   (Replaces: 8533943) In-Stock Immediately $ 7.92

16 W10256551 Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) Appelez-nous -
17 W10678688 Harness, Lower Special Order $ 233.36

18 W10846364 Hose, Pressure Switch   (Replaces: W10520039) In-Stock Immediately $ 23.23

19 W10005430 Clamp, Cable In-Stock Immediately $ 8.58

20 W10339680 Cable Tie Appelez-nous -
20 WPW10109200 Screw   (Replaces: 8533943) In-Stock Immediately $ 7.92

21 WPW10298887 Cable Tie   (Replaces: W10298887) Special Order $ 7.18

22 W10836434 Barrel, Agitator   (Replaces: W10680216) Special Order $ 160.96

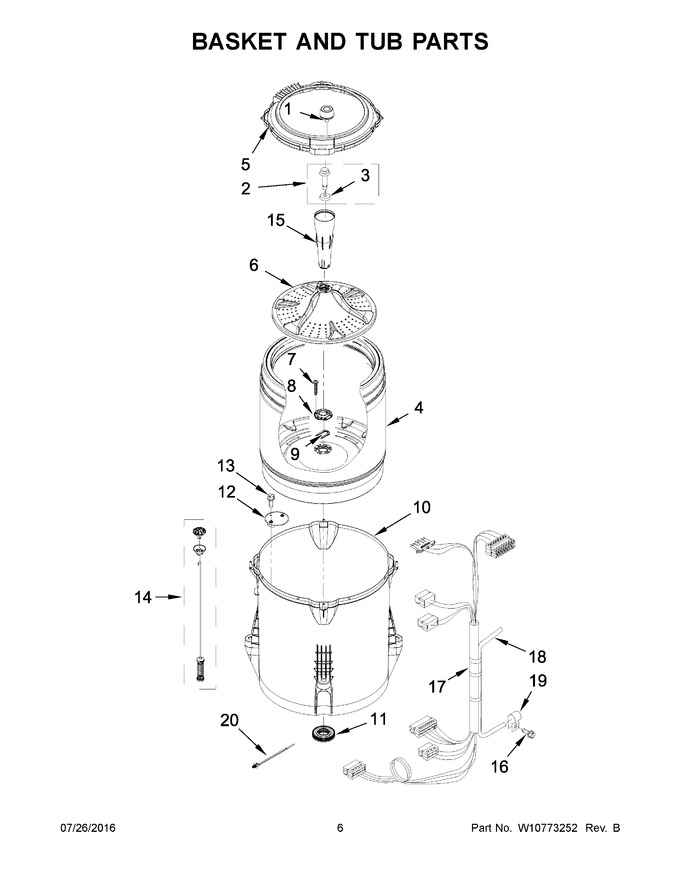

    View Diagram in Separate Window     Print Icon   Print Part List
