SELECT A DIAGRAM
New Model Search:

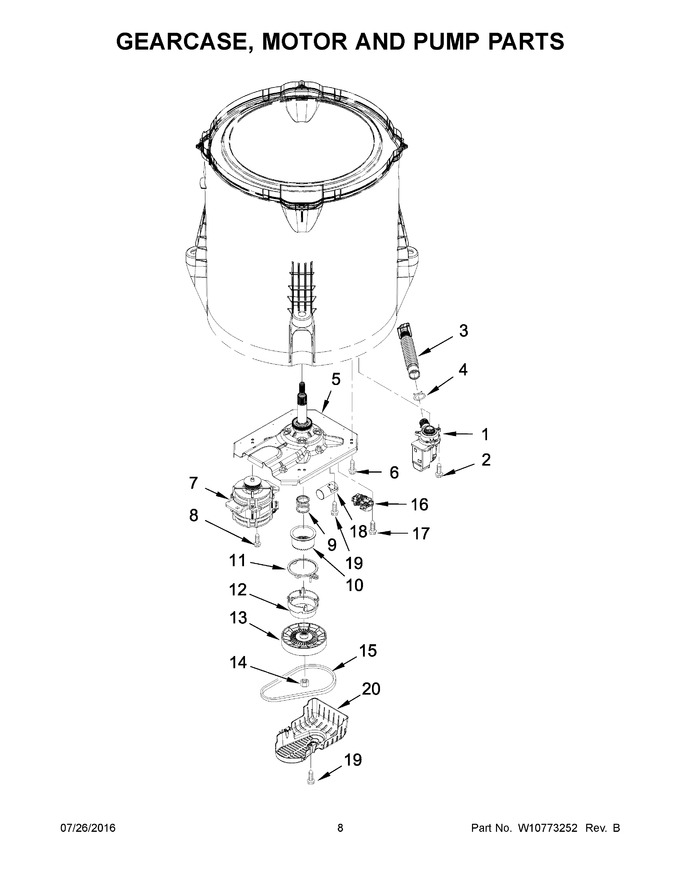

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10661045 | Pump Assembly, Drain (Replaces: W10215134) |
|
Immediately | $ 69.34 | ||||
| 1 | WPW10661045 | Pump Assembly, Drain (Replaces: W10614033) |
|
Immediately | $ 69.34 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.55 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly Complete (Replaces: W10444123) |
|
Immediately | $ 32.20 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.93 | ||||
| 5 | W11454372 | Gearcase Assembly (Replaces: W10795113) |
|
$ 326.03 | |||||
| 5 | W11454372 | Gearcase Assembly (Replaces: W10469845) |
|
$ 326.03 | |||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 6.80 | ||||
| 7 | W10832724 | Motor, Drive (Replaces: W10416660) |
|
Immediately | $ 338.09 | ||||
| 7 | W10832724 | Motor, Drive (Replaces: W10677719) |
|
Immediately | $ 338.09 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 13.33 | |||||
| 9 | W10721967 | Spring, Splutch (Replaces: W10006382) |
|
Immediately | $ 53.41 | ||||
| 10 | W10721967 | Slider, Splutch (Replaces: W10239971) |
|
Immediately | $ 53.41 | ||||
| 11 | W10721967 | Cam Ring, Splutch (Replaces: W10006353) |
|
Immediately | $ 53.41 | ||||
| 12 | W10721967 | Cam, Splutch (Replaces: W10006354) |
|
Immediately | $ 53.41 | ||||
| 13 | W10721967 | Pulley (Replaces: W10239973) |
|
Immediately | $ 53.41 | ||||
| 14 | W10759923 | Nut (Replaces: W10604214) |
|
$ 7.52 | |||||
| 15 | WPW10006384 | Belt, Drive (Replaces: W10006384) |
|
Immediately | $ 34.79 | ||||
| 16 | W10913953 | Actuator- Shift (Replaces: W10815026) |
|
Immediately | $ 62.81 | ||||
| 16 | W11481722 | Actuator, Shift (Replaces: W10597177) |
|
Immediately | $ 148.96 | ||||
| 17 | W11596033 | Screw (Replaces: 9741052) |
|
$ 12.81 | |||||
| 18 | W11395618 | Capacitor, Motor Run (Replaces: W10625046) |
|
Immediately | $ 109.23 | ||||
| 19 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.59 | ||||
| 20 | W11778479 | Shield, Pulley Cover (Replaces: W10550173) |
|
$ 61.35 |
