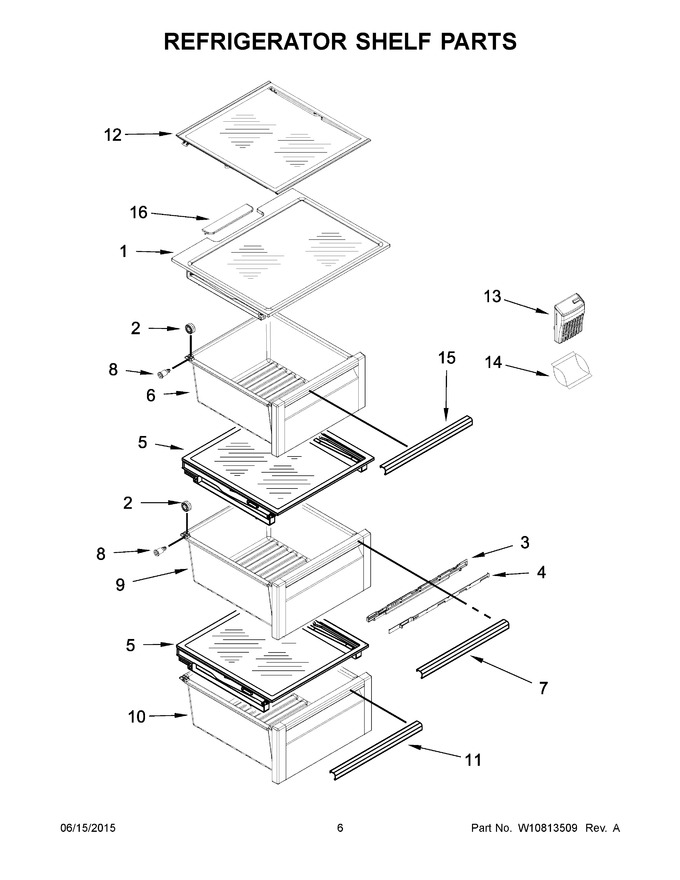

04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10387390		Shelf, Snack Pan   (Replaces: W10387390)				$ 238.64
2	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 14.17
3	W10257334		Slide, Humidity				$ 55.04
4	W10316452		Housing, Humidity				$ 83.39
5	W10362173		Cover, Assembly				$ 227.35
6	WPW10542033		Snack Pan   (Replaces: W10542033)				$ 254.98
7	WPW10531023		Trim, Handle   (Replaces: W10531023)				$ 98.47
8	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 32.89
9	WPW10531078		Crisper Pan   (Replaces: W10531078)				$ 173.15
10	WPW10531080		Meat Pan   (Replaces: W10531080)				$ 153.92
11	WPW10531022		Trim, Handle   (Replaces: W10531022)				$ 97.29
12	W11219088		Shelf Assembly   (Replaces: W10315528)				$ 225.75
13	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 29.35
14	W10346771		Filter, Produce Preserver		Appelez-nous	-
15	WPW10542020		Trim, Handle   (Replaces: W10542020)				$ 104.65
16	W10392412		Filler, Snack Shelf (grey)		Appelez-nous	-
