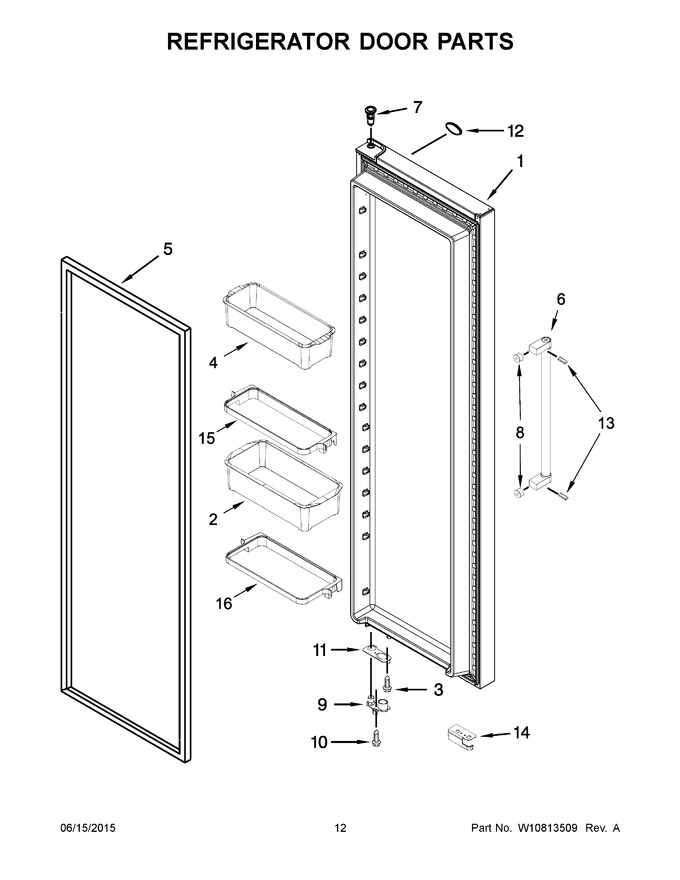

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10768218 | Door, Refrigerator (includes Item 5) (stainless) |
|
- | |||||
| 2 | WPW10316457 | Bin, Door Gallon (Replaces: W10316457) |
|
Immediately | $ 88.82 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | WPW10316461 | Door Bin, Shallow (Replaces: W10316461) |
|
$ 75.63 | |||||
| 5 | W10355582 | Gasket, Door (grey) (Replaces: W10249916) |
|
$ 307.13 | |||||
| 6 | W11340150 | Handle (stainless) (Replaces: W10740429) |
|
$ 180.17 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10661886) |
|
Immediately | $ 11.59 | ||||
| 9 | WPW10257203 | Closer, Upper Cam Door (grey) (Replaces: W10257203) |
|
$ 11.66 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10367462) |
|
$ 72.22 | |||||
| 12 | W10909682 | Nameplate (grey) (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 13 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 14 | W11661847 | Cover, Door Stop (grey) (Replaces: W10257218) |
|
Immediately | $ 28.54 | ||||
| 15 | WPW10494333 | Frame, Shallow Door Bin (Replaces: W10494333) |
|
$ 240.53 | |||||
| 16 | WPW10494334 | Frame, Gallon Door Bin (Replaces: W10494334) |
|
$ 240.27 |
