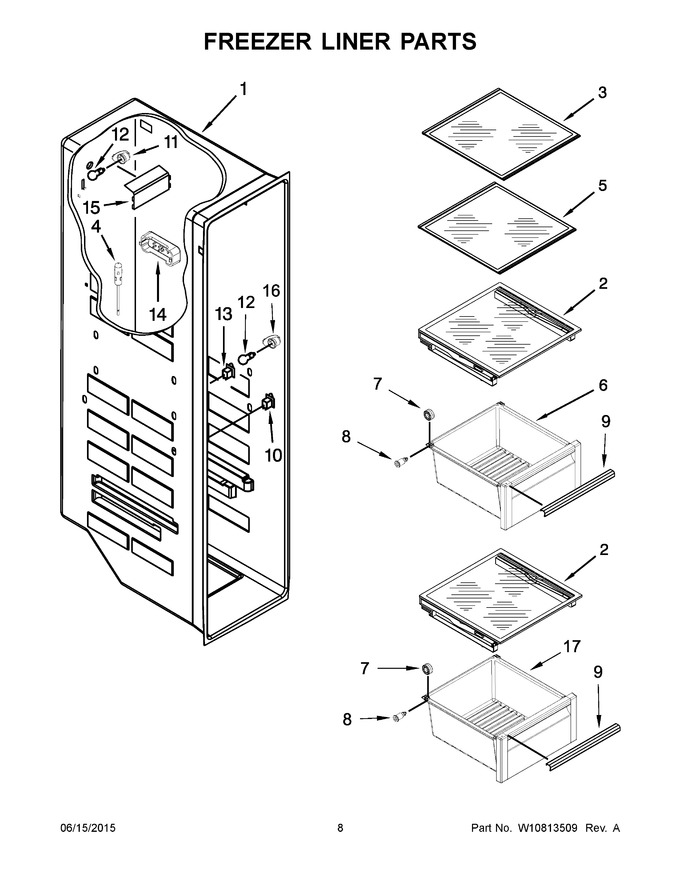

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10362175 | Cover Assembly |
|
$ 240.05 | |||||
| 3 | W10321181 | Shelf, Glass Upper (Replaces: W10315533) |
|
$ 240.54 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 30.24 | ||||
| 5 | WPW10321182 | Shelf, Glass Lower (Replaces: W10315534) |
|
$ 246.29 | |||||
| 6 | W10846447 | Bin Assembly (Replaces: W10542031) |
|
Immediately | $ 246.03 | ||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 14.17 | ||||
| 8 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 32.89 | |||||
| 9 | W10542017 | Trim, Handle |
|
$ 92.72 | |||||
| 10 | W11457217 | Switch, Rocker Arm Combination (freezer) (Replaces: 1115373) |
|
$ 36.08 | |||||
| 11 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 12 | W11338583 | Lamp, Led (Replaces: W10745744) |
|
Immediately | $ 96.49 | ||||
| 13 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 32.99 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 79.54 | ||||
| 15 | WPW10269101 | Lens (Replaces: W10269101) |
|
$ 96.71 | |||||
| 16 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 95.54 | |||||
| 17 | W10542032 | Bin Assembly |
|
$ 278.81 |
