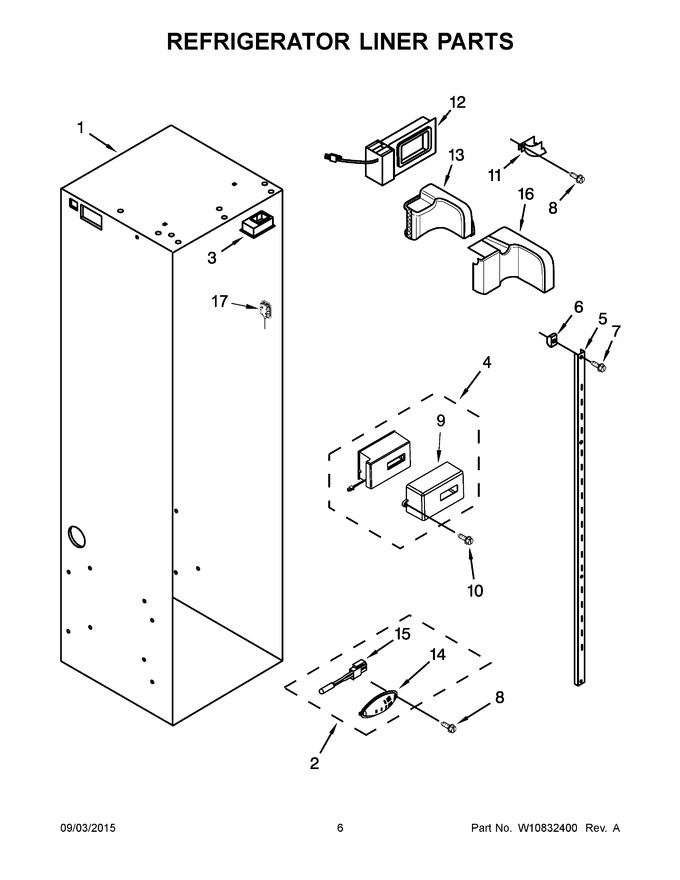

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10784036		Assembly, Thermistor			Immediately	$ 96.26
3	2208970		Duct, Air				$ 136.26
4	W10775715		Assembly, Diffuser				$ 157.53
5	W10749139		Ladder (long)				$ 165.88
6	2259445		Support, Ladder		Appelez-nous	-
7	W10678207		Screw (black)   (Replaces: W10745668)				$ 14.79
8	W10678210		Screw (black)				$ 17.82
9	W10775714		Cover, Air Diffuser		Appelez-nous	-
10	W11624204		Screw   (Replaces: 486194)				$ 13.25
11	W10775705		Guard, Air Return		Appelez-nous	-
12	WP2221296		Assembly, Air Baffle   (Replaces: 2221296)			Immediately	$ 371.32
13	W10203322		Assembly, Diffuser			Immediately	$ 80.20
14	W10784036		Cover, Thermistor   (Replaces: W10783891)			Immediately	$ 96.26
15	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
16	W10775713		Cover, Diffuser				$ 81.85
17	W11683242		Assembly, Led Module   (Replaces: W10607479)			Immediately	$ 300.56
5A	W10749140		Ladder (short)				$ 154.41
