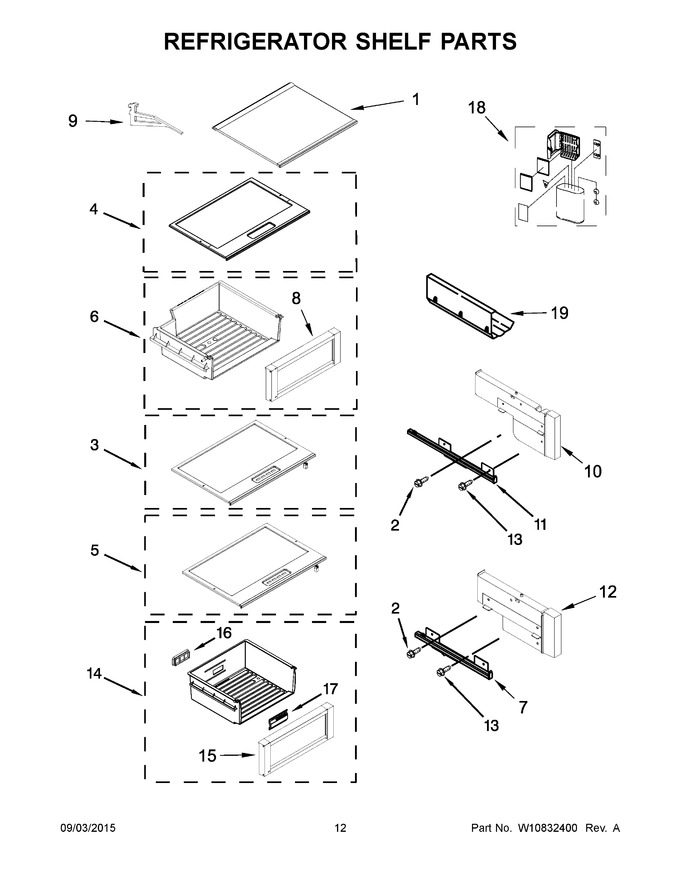

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11777984		Assembly, Shelf   (Replaces: W10187535)				$ 193.43
2	W10215666		Screw				$ 8.58
3	W11370858		Assembly, Crisper Cover   (Replaces: W10789234)				$ 544.82
4	W10837251		Assembly, Meat Pan Cover   (Replaces: W10785391)		Appelez-nous	-
5	W10789233		Assembly, Crisper Cover				$ 350.11
6	W10884286		Assembly, Meat Pan   (Replaces: W10732459)		Appelez-nous	-
7	W10844011		Slide, Meat Pan (left Hand)   (Replaces: W10794953)				$ 288.18
8	W10881984		Front, Meat Pan   (Replaces: W10789220)				$ 322.93
9	W11690161		Sidearm, Shelf   (Replaces: W10605575)			Immediately	$ 46.48
10	W10769876		Spacer, Crisper			Immediately	$ 217.12
11	W10844010		Slide, Crisper (left Hand)   (Replaces: W10794952)			Immediately	$ 308.80
12	W10769855		Spacer, Meat		Appelez-nous	-
13	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 7.43
14	W10884285		Assembly, Crisper Pan   (Replaces: W10732456)		Appelez-nous	-
15	W10881987		Front, Crisper Pan   (Replaces: W10789215)		Appelez-nous	-
16	2307810		Duct, Deli Pan   (Replaces: W10787392)		Appelez-nous	-
17	W10787391		Deflector, Air		Appelez-nous	-
18	W10593207		Assembly, Produce Preserver		Appelez-nous	-
19	W10701859		Rack, Wine				$ 19.38
11A	W10732303		Slide, Crisper (right Hand)			Immediately	$ 308.80
7A	W10732727		Slide, Meat Pan (right Hand)			Immediately	$ 308.65
