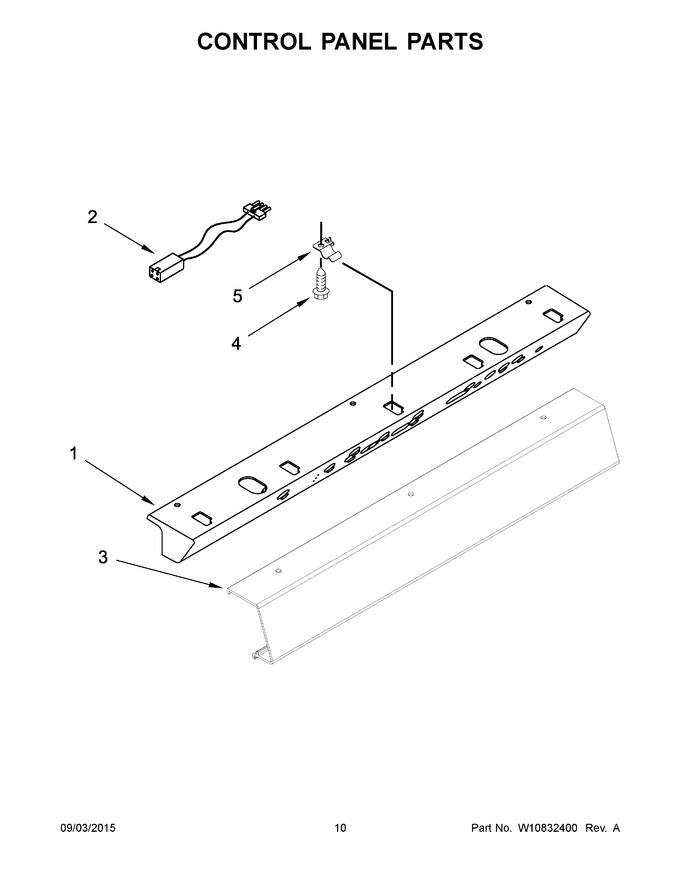

06 - Control Panel Parts


07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Top Grille And Unit Cover Parts


12 - Upper Unit Parts


13 - Lower Unit And Tube Parts


14 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11357533		Assembly, Control Box   (Replaces: W10785722)				$ 728.61
2	W10458299		Wire, Jumper				$ 25.93
3	W10775706		Bracket, Control Box				$ 137.32
4	W10678210		Screw (black)				$ 17.82
5	2317000		Clip, Control Box		Appelez-nous	-
