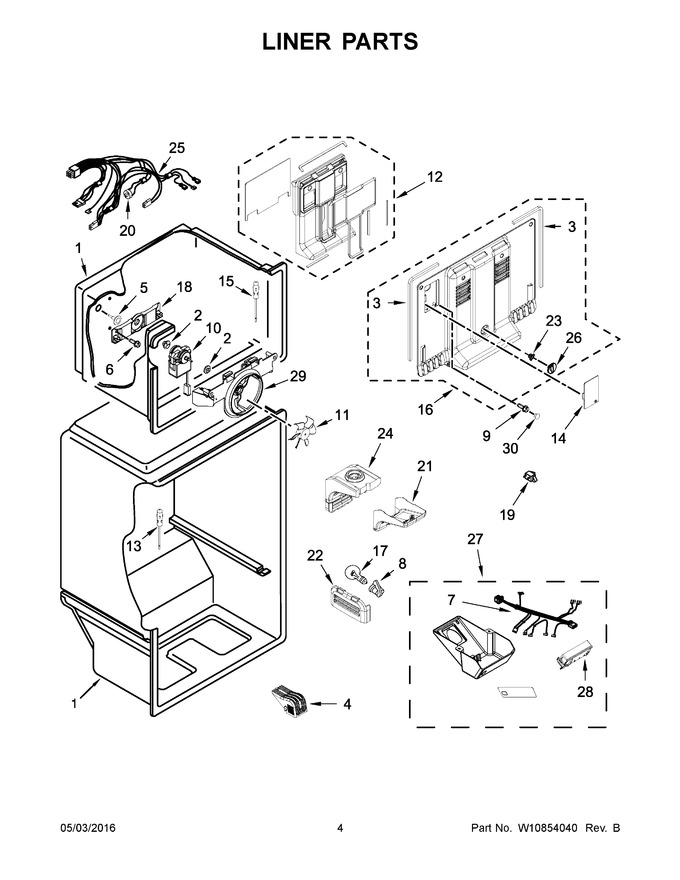

03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | W10849448 | Gasket, Evaporator Cover (Replaces: W10709194) |
|
Immediately | $ 86.12 | ||||
| 4 | W10920316 | Cover, Light (Replaces: W10628684) |
|
$ 88.28 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 7.23 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | W10797918 | Wire Assembly, Control Box |
|
- | |||||
| 8 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 12.48 | ||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 10 | WPW10173141 | Fan Motor (Replaces: W10173141) |
|
$ 286.88 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W10919804 | Assembly, Evaporator Plenum (Replaces: W10676682) |
|
Immediately | $ 90.95 | ||||
| 13 | W11438736 | Thermistor, Refrigerator (Replaces: W10556397) |
|
Immediately | $ 102.74 | ||||
| 14 | W10677275 | Cover, Hole |
|
$ 83.19 | |||||
| 15 | WPW10383615 | Thermistor, Freezer Evaporator (Replaces: W10383615) |
|
Immediately | $ 46.12 | ||||
| 16 | W11024683 | Cover, Evaporator (Replaces: W10668482) |
|
$ 221.04 | |||||
| 17 | W10716219 | Bulb, Light |
|
- | |||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 67.90 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | N/P | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 21 | W11256504 | Cover, Air Diffuser (Replaces: W10705209) |
|
$ 80.21 | |||||
| 22 | W10638176 | Cup, Air Diffuser |
|
$ 98.64 | |||||
| 23 | W11244470 | Baffle, Air Manual (Replaces: W10570951) |
|
$ 76.99 | |||||
| 24 | W10861170 | Assembly, Air Diffuser (Replaces: W10633587) |
|
Immediately | $ 70.25 | ||||
| 25 | W10797921 | Assembly, Evaporator Fan Wire (includes Bi-metal Defrost) |
|
- | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 82.67 | |||||
| 27 | W10891975 | Assembly, Control Box (Replaces: W10803499) |
|
- | |||||
| 28 | WPW10643378 | Control, Electronic (Replaces: W10643378) |
|
Immediately | $ 281.12 | ||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 30 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.89 |
