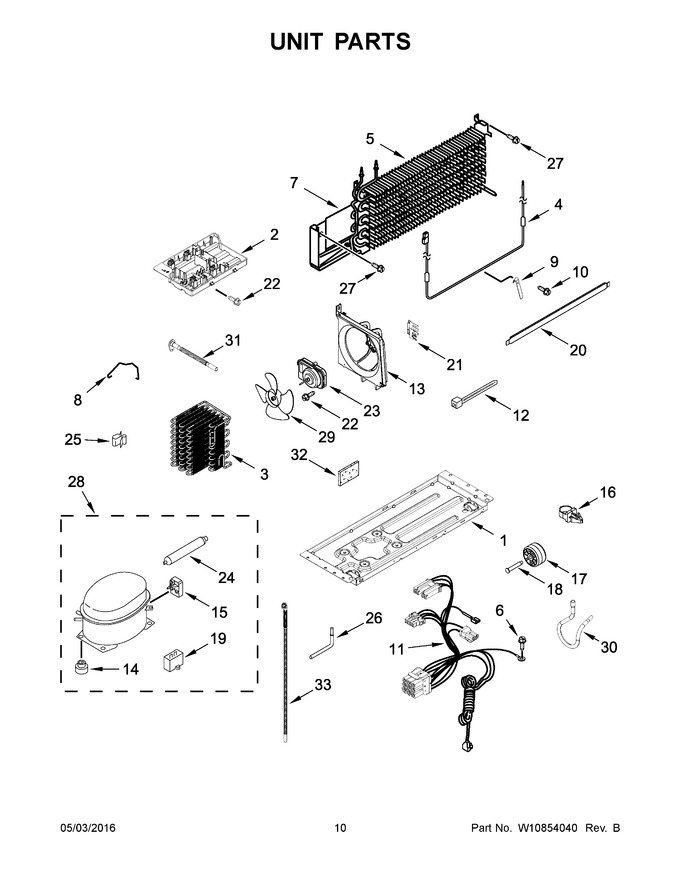

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10624648 | Support Plate, Compressor (Replaces: W10638694) |
|
$ 91.79 | |||||
| 2 | W10633582 | Tray, Evaporator |
|
$ 84.48 | |||||
| 3 | W11803146 | Condenser (Replaces: W10633575) |
|
Immediately | $ 199.41 | ||||
| 4 | W10405108 | Heater, Defrost |
|
- | |||||
| 5 | W10836706 | Assembly, Evaporator (Replaces: W10570565) |
|
Immediately | $ 388.14 | ||||
| 6 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| 8 | W10801781 | Strap, Bale |
|
- | |||||
| 9 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 18.11 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 11 | W10797920 | Harness, Unit |
|
- | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 13 | W11736795 | Bracket, Fan (Replaces: W10633579) |
|
Immediately | $ 64.33 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | WP2312007 | Start Device (Replaces: 2312007) |
|
$ 170.72 | |||||
| 16 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | W10801770 | Capacitor |
|
- | |||||
| 20 | W10300902 | Cover, Heater |
|
$ 26.61 | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 21.10 | |||||
| 22 | W10829281 | Screw (Replaces: W10622701) |
|
$ 11.95 | |||||
| 23 | W10527160 | Motor, Condenser Fan |
|
- | |||||
| 24 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 51.42 | ||||
| 25 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.01 | |||||
| 26 | W10831950 | Tube, Process |
|
- | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 28 | W10183407 | Compressor (Replaces: W10120455) |
|
$ 392.05 | |||||
| 29 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 89.84 | |||||
| 30 | W10756329 | Tube, Suction |
|
- | |||||
| 31 | W10646247 | Extension, Drain Tube |
|
$ 23.70 | |||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 33 | W10633573 | Tube, Drain |
|
Immediately | $ 31.67 | ||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | 978030 | Valve, Access |
|
$ 123.53 | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | N/P | Refrigerant Charge 4.2 Oz (r-134a) |
|
- |
