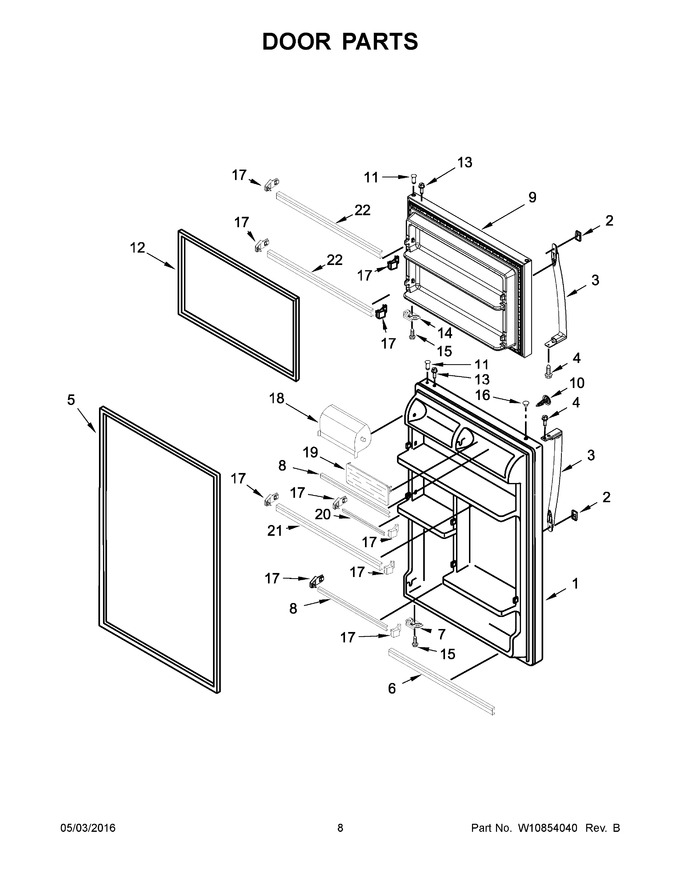

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10636410		Refrigerator Door (includes Illustration 5) (white)   (Replaces: W10636410)				$ 617.11
2	WPW10672338		Handle, Trim (white)   (Replaces: W10672338)			Immediately	$ 26.92
3	WPW10672333		Handle, Door (white)   (Replaces: W10672333)			Immediately	$ 207.36
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
5	W10838574		Door Gasket, Magnetic (white)   (Replaces: W10638676)			Immediately	$ 96.40
6	W11097831		Trim, Door   (Replaces: W10719703)				$ 11.07
7	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 61.93
8	W11129820		Trim, Door   (Replaces: W10719700)			Immediately	$ 114.61
9	LW10636409		Freezer Door (includes Illustration 12) (white)   (Replaces: W10636409)				$ 600.53
10	W10830984		Hole Plug (white)   (Replaces: W10663736)				$ 7.54
11	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
12	W10861499		Door Gasket, Magnetic (white)   (Replaces: W10638675)			Immediately	$ 88.56
13	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
16	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.93
18	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 45.30
19	WP2188234		Door, Flip Up   (Replaces: 2188234)			Immediately	$ 54.28
20	W11106290		Trim, Shelf Door   (Replaces: W10719701)			Immediately	$ 114.61
21	W11170805		Trim, Door   (Replaces: W10678772)				$ 114.61
22	W11126055		Trim, Door   (Replaces: W10719702)			Immediately	$ 114.61
