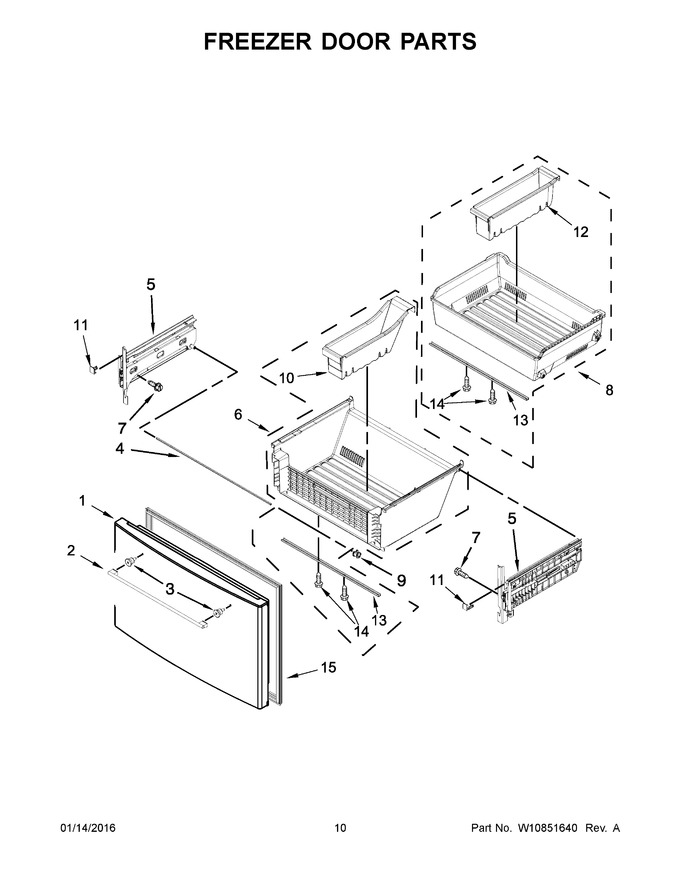

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10695007 | Door, Freezer (stainless) |
|
- | |||||
| 2 | W10710654 | Handle, Door (stainless) (Replaces: W10710654N) |
|
$ 342.09 | |||||
| 3 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 4 | W10503521 | Shaft, Rack |
|
$ 24.00 | |||||
| 5 | W11668671 | Assembly, Bracket (left Hand) (Replaces: W10795770) |
|
Immediately | $ 476.13 | ||||
| 6 | W10590553 | Assembly, Lower Pan |
|
$ 122.88 | |||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 8 | W10704089 | Assembly, Upper Pan |
|
$ 89.74 | |||||
| 9 | W10852685 | Clip, Shaft (Replaces: W10709748) |
|
$ 10.25 | |||||
| 10 | W10507444 | Divider, Lower |
|
$ 55.93 | |||||
| 11 | WPW10485096 | Stop, Pan (left Hand) (Replaces: W10485096) |
|
$ 75.29 | |||||
| 12 | WPW10485654 | Divider, Upper (Replaces: W10485654) |
|
$ 60.13 | |||||
| 13 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 139.59 | ||||
| 14 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 7.50 | ||||
| 15 | W10407216 | Gasket, Door (grey) (Replaces: W10248749) |
|
Immediately | $ 255.75 | ||||
| 11A | WPW10485089 | Stop, Pan (right Hand) (Replaces: W10485089) |
|
$ 78.04 | |||||
| 5A | W11668671 | Assembly, Bracket (right Hand) (Replaces: W10795768) |
|
Immediately | $ 476.13 |
