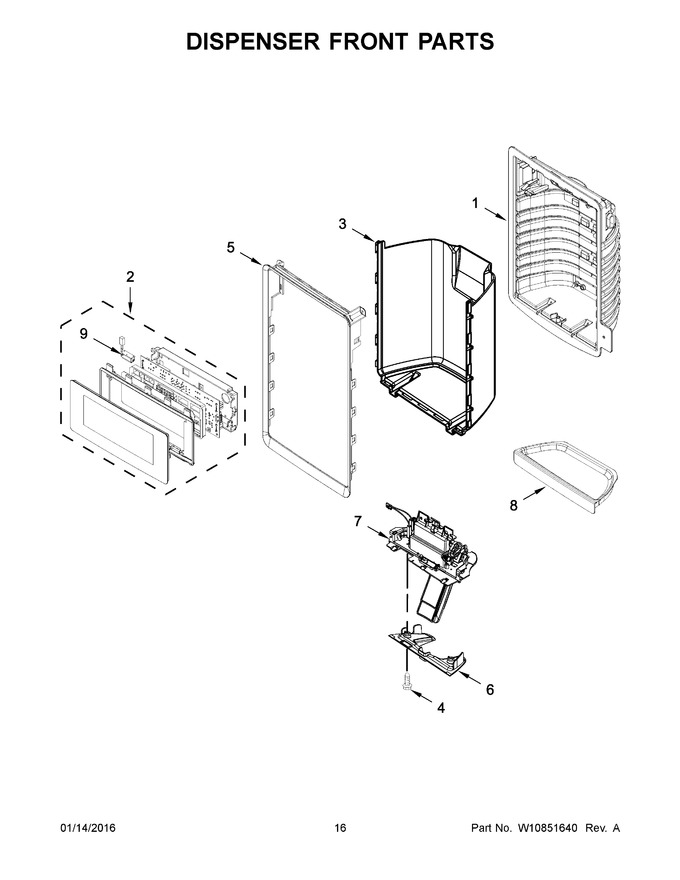

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10854030 | Assembly, User Interface (stainless) (Replaces: W10808732) |
|
- | |||||
| 3 | W10488324 | Wall, Dispenser False (grey) |
|
- | |||||
| 4 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 5 | WPW10402180 | Ring, Trim (chrome) (Replaces: W10402180) |
|
Immediately | $ 60.92 | ||||
| 6 | W10609518 | Cover, Separator |
|
- | |||||
| 7 | WPW10616134 | Assembly, Separator (grey) (Replaces: W10616134) |
|
$ 209.79 | |||||
| 8 | W11448765 | Tray, Drip (grey) (Replaces: W10819059) |
|
Immediately | $ 14.30 | ||||
| 9 | W11290115 | Assembly, Led (Replaces: W10470750) |
|
$ 84.45 |
