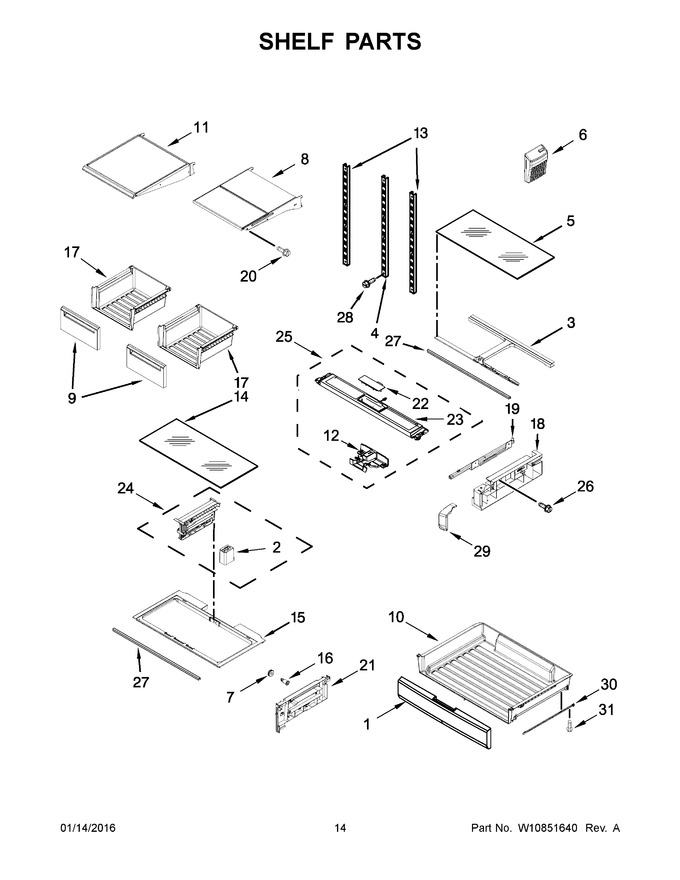

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10559660		Front, Pantry   (Replaces: W10559660)				$ 219.72
2	W10530315		Support, Crisper				$ 15.30
3	W10515051		Support, Pantry				$ 62.37
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 32.30
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 202.57
6	W11605789		Holder, Produce Filter   (Replaces: W10408748)			Immediately	$ 15.89
7	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 7.28
8	WPW10402712		Shelf, Tuck   (Replaces: W10402712)				$ 198.98
9	W10847546		Assembly, Crisper Front   (Replaces: W10524913)			Immediately	$ 109.39
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 135.50
11	WPW10402695		Assembly, Shelf   (Replaces: W10402695)				$ 193.28
12	W10512596		Knob, Pantry Temperature Control		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 45.56
14	WPW10248578		Glass, Crisper   (Replaces: W10248578)				$ 298.54
15	W10717574		Cover, Crisper				$ 163.33
16	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 32.89
17	W10850129		Pan, Crisper   (Replaces: W10410352)			Immediately	$ 137.84
18	W10248798		Sideplate, Pantry (left Hand)				$ 97.50
19	W10508327		Slide, Pantry (left Hand)				$ 270.96
20	W10421495		Screw				$ 17.18
21	W11173721		Plate, Crisper (left Hand)   (Replaces: W10530311)				$ 31.73
22	W10554281		Housing, Pantry Temperature Control		Appelez-nous	-
23	W10525200		Cover, Pantry Top		Appelez-nous	-
24	W10549606		Assembly, Crisper Track				$ 110.88
25	W10554737		Assembly, Front Pantry Cover		Appelez-nous	-
26	W10185612		Screw				$ 6.37
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 120.65
28	W10423560		Screw		Appelez-nous	-
29	W10426799		Front, Sideplate (pantry) (left Hand)		Appelez-nous	-
30	W10508330		Runner, Pantry Roller (left Hand)		Appelez-nous	-
31	WP8281136		Screw   (Replaces: 8281136)				$ 6.57
18A	W10248796		Sideplate, Pantry (right Hand)				$ 110.73
19A	W10508326		Slide, Pantry (right Hand)				$ 280.33
21A	W10530310		Plate, Crisper (right Hand)				$ 26.72
29A	W10426797		Front, Sideplate (pantry) (right Hand)				$ 29.15
30A	W10508328		Runner, Pantry Roller (right Hand)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
