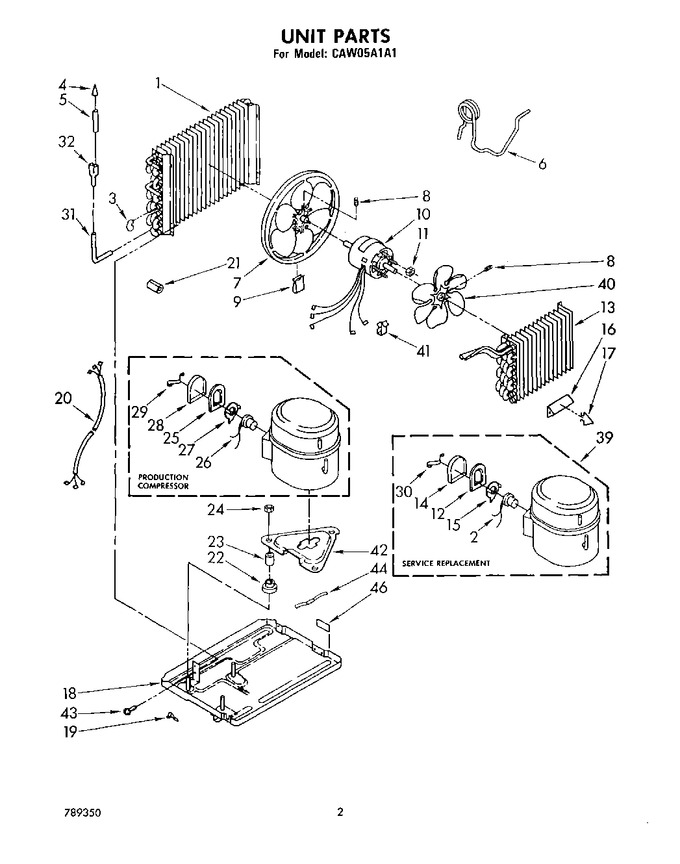

02 - Unit
03 - Lit/optional
04 - Air Flow And Control
05 - Optional (continued)
06 - Cabinet
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 950960 | Condenser |
|
- | |||||
| 2 | 643295 | Overload |
|
- | |||||
| 3 | 855199 | Bend, Return (11) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 484230 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 950961 | Tube, Restrictor (length 40.0``) |
|
- | |||||
| 7 | 997884 | Blade, Fan |
|
- | |||||
| 8 | 595085 | Setscrew, 5/16-24 X 1/4 |
|
- | |||||
| 9 | 876034 | Clip, Balancing |
|
- | |||||
| 10 | 949498 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 643296 | Gasket, Cover |
|
- | |||||
| 13 | 950243 | Evaporator |
|
- | |||||
| 14 | 643297 | Cover, Terminal |
|
- | |||||
| 15 | 643298 | Spring, Overload |
|
- | |||||
| 16 | 996773 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 950323 | Base |
|
$ 30.30 | |||||
| 19 | 855930 | Clamp, Restrictor Tube |
|
- | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | 950253 | Dampener, Split |
|
- | |||||
| 22 | 646499 | Grommet (3) |
|
- | |||||
| 23 | 949990 | Sleeve (3) |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 643296 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 949996 | Overload |
|
- | |||||
| 27 | 949997 | Spring, Overload |
|
- | |||||
| 28 | 949999 | Cover, Terminal |
|
- | |||||
| 29 | 950005 | Retainer, Terminal Cover |
|
- | |||||
| 30 | 643299 | Retainer, Cover |
|
- | |||||
| 31 | 950814 | Tube, 90~ Connect |
|
- | |||||
| 32 | 947364 | Tube, Flow Divider |
|
- | |||||
| 39 | 485320 | Compressor Assembly |
|
- | |||||
| 40 | 646122 | Fan, Blade Evaporator |
|
- | |||||
| 41 | 852451 | Clamp, Wiring |
|
- | |||||
| 42 | 949975 | Plate, Mounting Compressor |
|
- | |||||
| 43 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 43 | 488481 | Screw, Repair |
|
- | |||||
| 44 | 643179 | Spring, Mounting |
|
- | |||||
| 46 | 993191 | Seal, Base (r.s.) |
|
- |
