SELECT A DIAGRAM

02 - Unit


03 - Lit/optional


04 - Air Flow And Control


05 - Optional (continued)


06 - Cabinet

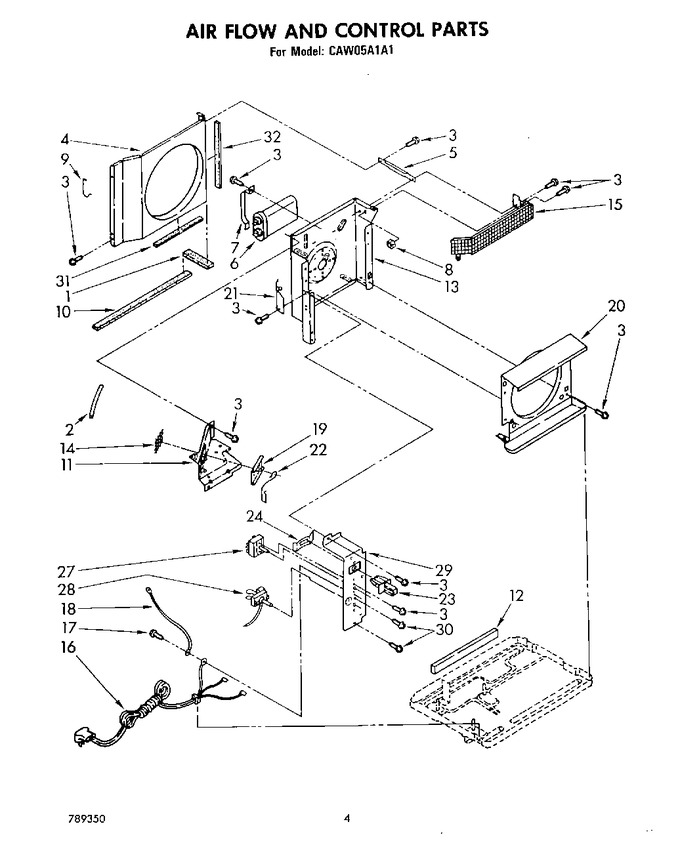

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	646870		Seal, Condensate		Appelez-nous	-
2	212643		Sealer, Tube   (Replaces: 859934)			Immediately	$ 86.78
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	488481		Screw, Repair		Appelez-nous	-
4	646297		Shroud, Condenser		Appelez-nous	-
5	649879		Support, Unit		Appelez-nous	-
6	950198		Capacitor, Running		Appelez-nous	-
7	856105		Bracket, Capacitor		Appelez-nous	-
8	486288		Nut, Speed No.8a		Appelez-nous	-
9	477442		Clip, Shroud		Appelez-nous	-
10	859931		Seal, Strip		Appelez-nous	-
11	646130		Extension, Dividing Wall (requires Insulation Part No. 469938)		Appelez-nous	-
12	854841		Seal, Strip		Appelez-nous	-
13	859822		Wall, Dividing Assembly (requires Insulation Part No. 469938)		Appelez-nous	-
14	856929		Screen, Door		Appelez-nous	-
15	996685		Guard, Evaporator Impeller		Appelez-nous	-
16	647216		Cord, Appliance		Appelez-nous	-
17	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
18	856094		Wire, Ground		Appelez-nous	-
19	646134		Door, Exhaust		Appelez-nous	-
20	646123		Shroud, Evaporator		Appelez-nous	-
21	859890		Plate, Wall		Appelez-nous	-
22	950255		Arm, Door		Appelez-nous	-
23	953066		Actuator, Door		Appelez-nous	-
24	853565		Spring, Retainer		Appelez-nous	-
27	950283		Switch, Rotary		Appelez-nous	-
28	950403		Control, Temperature		Appelez-nous	-
29	993398		Panel, Control		Appelez-nous	-
30	488734		Screw, 6-32 X .175		Appelez-nous	-
31	WP854334		Seal, Condensate   (Replaces: 852063)				$ 12.55
32	857923		Seal, Condenser (r.s.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
