SELECT A DIAGRAM
02 - Unit
03 - Lit/optional
04 - Air Flow And Control
05 - Optional (continued)
06 - Cabinet
SELECT A DIAGRAM
New Model Search:

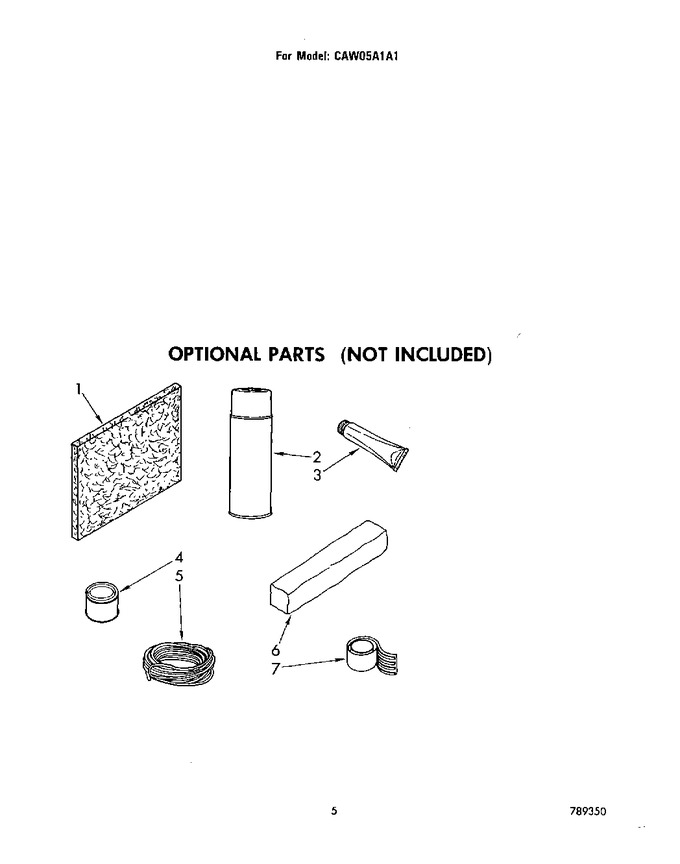

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 855438 | Insulation, Cabinet (top) |
|
- | |||||
| 1 | 854937 | Insulation, Cabinet (rigth Side) |
|
- | |||||
| 1 | 854938 | Insulation, Cabinet (left Side) |
|
- | |||||
| 2 | 813684 | Adhesive, Spray 24 Oz. |
|
- | |||||
| 3 | WP279368 | Adhesive, Insulation (2oz Tube) (Replaces: 279368) |
|
Immediately | $ 104.81 | ||||
| 4 | 485426 | Wire, 25` Roll |
|
- | |||||
| 5 | 47263 | Wire, 25`` Roll (white 12 Ga.) |
|
- | |||||
| 5 | 242826 | Wire, 25`` Roll (white 14 Ga.) |
|
- | |||||
| 5 | 47261 | Wire, 25`` Roll (black 12 Ga.) |
|
- | |||||
| 5 | 299885 | Wire, 25` Roll (red 12 Ga.) |
|
- | |||||
| 5 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 5 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 5 | 242285 | Wire, 25` Roll (red 14 Ga.) |
|
- | |||||
| 6 | 4318168 | Sealer, Permagum 1 Lb. Bar (Replaces: 99344) |
|
Immediately | $ 74.82 | ||||
| 7 | 212643 | Sealer, Permagum 4 - 1` Strips |
|
Immediately | $ 86.78 |
