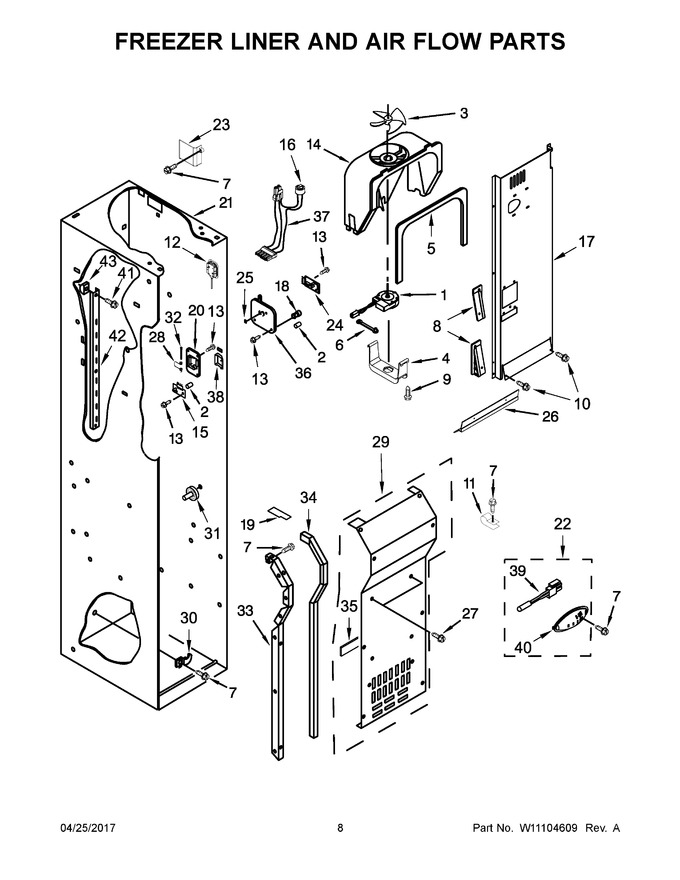

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11671461 | Motor, Fan (Replaces: W10436861) |
|
Immediately | $ 185.87 | ||||
| 2 | 2198665 | Tube, Circuit Board |
|
$ 21.52 | |||||
| 3 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 4 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 21.60 | |||||
| 5 | WP2302817 | Gasket, Scroll Assembly (Replaces: 2302817) |
|
$ 90.94 | |||||
| 6 | W11671528 | Grommet, Motor (Replaces: W10321090) |
|
- | |||||
| 7 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 8 | W10769280 | Wedge, Air Duct (left Hand) |
|
- | |||||
| 9 | WPW10141604 | Screw (Replaces: W10141604) |
|
$ 7.97 | |||||
| 10 | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 16.74 | |||||
| 11 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 12 | W11683242 | Assembly, Led Module (Replaces: W10843339) |
|
Immediately | $ 300.56 | ||||
| 13 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 105.81 | ||||
| 15 | W11629974 | Board, Emitter Circuit (Replaces: W10193840) |
|
Immediately | $ 379.01 | ||||
| 16 | WPW10160570 | Bi-metal, Defrost (Replaces: W10160570) |
|
Immediately | $ 125.08 | ||||
| 17 | W10769282 | Duct, Air |
|
- | |||||
| 18 | WP2198643 | Lens, Receiver (Replaces: 2198643) |
|
$ 7.73 | |||||
| 19 | 2209066 | Block, Fan Scroll (left Hand) |
|
- | |||||
| 20 | W10782876 | Cover, Emitter |
|
$ 82.72 | |||||
| 21 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 22 | W10784036 | Assembly, Thermistor |
|
Immediately | $ 96.26 | ||||
| 23 | W10785703 | Cover, Air Outlet |
|
$ 80.35 | |||||
| 24 | W11629974 | Board, Receiver Circuit (Replaces: W10290817) |
|
Immediately | $ 379.01 | ||||
| 25 | W10789227 | Slide, Icemaker Shut Off |
|
- | |||||
| 26 | W10745665 | Support, Air Duct |
|
- | |||||
| 27 | W10678210 | Screw (black) |
|
$ 17.82 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 82.29 | |||||
| 29 | W10748861 | Assembly, Evaporator Cover |
|
$ 219.63 | |||||
| 30 | 1112260 | Support, Evaporator |
|
- | |||||
| 31 | W10789219 | Assembly, Shelf Stud (includes Screw) |
|
$ 22.89 | |||||
| 32 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 16.79 | |||||
| 33 | 2221107 | Rail, Evaporator Cover (left Hand) |
|
- | |||||
| 34 | W10782823 | Gasket, Evaporator Cover |
|
- | |||||
| 35 | W10581989 | Gasket, Evaporator Cover |
|
- | |||||
| 36 | W10782879 | Cover, Receiver |
|
$ 71.69 | |||||
| 37 | W11676572 | Harness, Bi-metal Wire (Replaces: W10482187) |
|
$ 118.07 | |||||
| 38 | W10782877 | Flipper, Shut Off |
|
$ 77.73 | |||||
| 39 | WP2306010 | Thermistor (Replaces: 2306010) |
|
Immediately | $ 93.22 | ||||
| 40 | W10784036 | Cover, Thermistor (Replaces: W10783891) |
|
Immediately | $ 96.26 | ||||
| 41 | W10678207 | Screw (Replaces: W10832438) |
|
$ 14.79 | |||||
| 42 | W10787153 | Ladder, Shelf |
|
- | |||||
| 43 | 2259445 | Support, Ladder |
|
- | |||||
| 19A | 2209482 | Block, Fan Scroll (right Hand) |
|
- | |||||
| 33A | 2259355 | Rail, Evaporator Cover (right Hand) |
|
$ 113.89 | |||||
| 8A | W10769279 | Wedge, Air Duct (right Hand) |
|
- |
