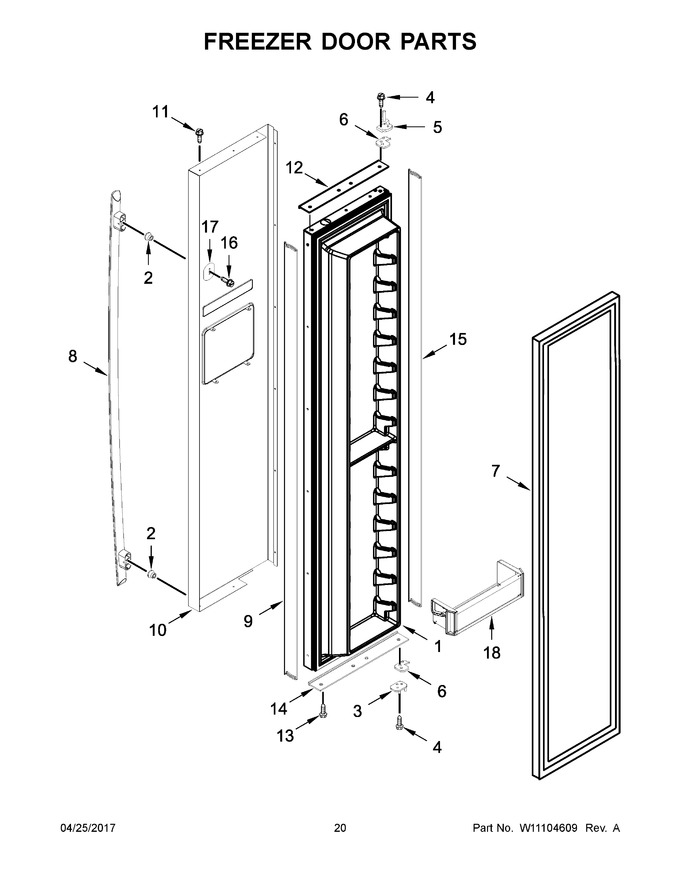

11 - Freezer Door Parts


12 - Dispenser Parts


13 - Top Grille And Unit Cover Parts


14 - Upper Unit Parts


15 - Lower Unit And Tube Parts


16 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10783292		Door, Freezer				$ 1,070.39
2	WPW10168981		Mount, Handle   (Replaces: W10168981)				$ 15.92
3	W11752085		Assembly, Hinge (bottom)   (Replaces: 2302879)				$ 56.76
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
5	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 117.33
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
7	W10800818		Gasket, Door (black)   (Replaces: W10749269)			Immediately	$ 344.13
8	WPW10183428		Handle, Door (stainless)   (Replaces: W10183428)			Immediately	$ 303.40
9	W10758377		Spacer, Handle Side Door				$ 98.81
10	W10800820		Skin, Door (stainless)   (Replaces: W10756226)				$ 651.11
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
12	W10758114		Spacer, Door (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.42
14	W10766559		Spacer, Door (bottom)		Appelez-nous	-
15	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
17	W10127710		Plate, Handle Door			Immediately	$ 23.35
18	W10529451		Bin, Shallow				$ 350.71
