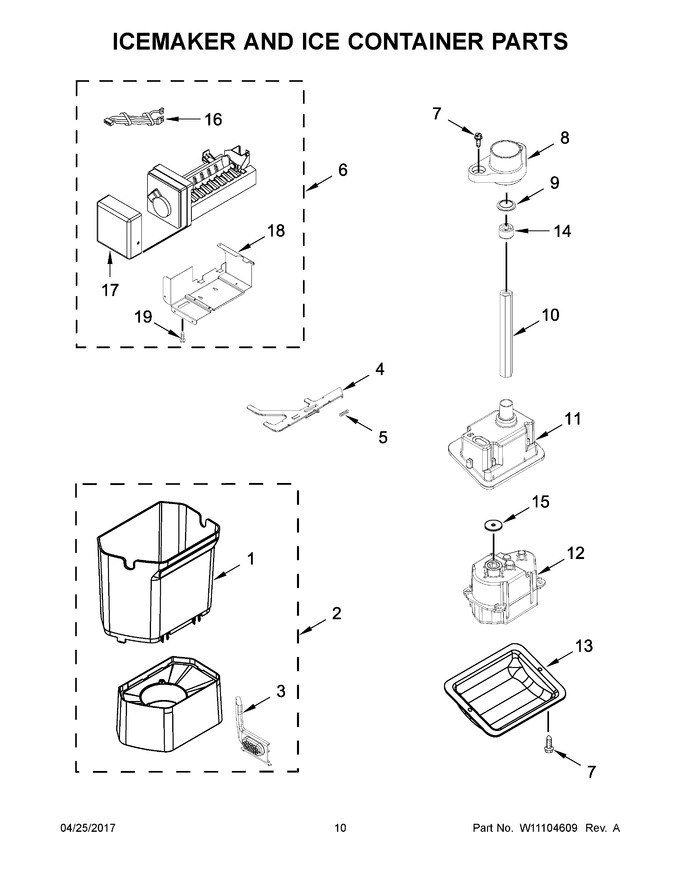

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2222970 | Bin, Ice (Replaces: 2222970) |
|
Immediately | $ 236.39 | ||||
| 2 | W10784413 | Assembly, Ice Container |
|
$ 357.22 | |||||
| 3 | W10749207 | Button, Bin |
|
$ 62.73 | |||||
| 4 | W10134785 | Latch, Bin |
|
$ 99.86 | |||||
| 5 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 6.80 | |||||
| 6 | W11579388 | Complete Icemaker Assembly (Replaces: W10790819) |
|
Immediately | $ 261.90 | ||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 8 | W10785288 | Clip, Shaft |
|
$ 12.06 | |||||
| 9 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.31 | ||||
| 10 | W11841865 | Shaft, Drive (Replaces: 2318030) |
|
Immediately | $ 103.73 | ||||
| 11 | W11404938 | Enclosure, Motor (Replaces: W10818351) |
|
Immediately | $ 65.66 | ||||
| 12 | 2315547 | Motor, Dispenser |
|
- | |||||
| 13 | W10785082 | Cover, Motor |
|
$ 81.75 | |||||
| 14 | WP2315559 | Sleeve, Bearing (Replaces: 2315559) |
|
$ 76.87 | |||||
| 15 | WPW10254073 | Washer (Replaces: W10254073) |
|
Immediately | $ 9.55 | ||||
| 16 | W10508659 | Assembly, Icemaker Wire |
|
$ 120.77 | |||||
| 17 | W10801567 | Cover, Icemaker |
|
- | |||||
| 18 | W10788852 | Bracket, Icemaker Mounting |
|
$ 147.45 | |||||
| 19 | W10784922 | Screw (black) |
|
- |
