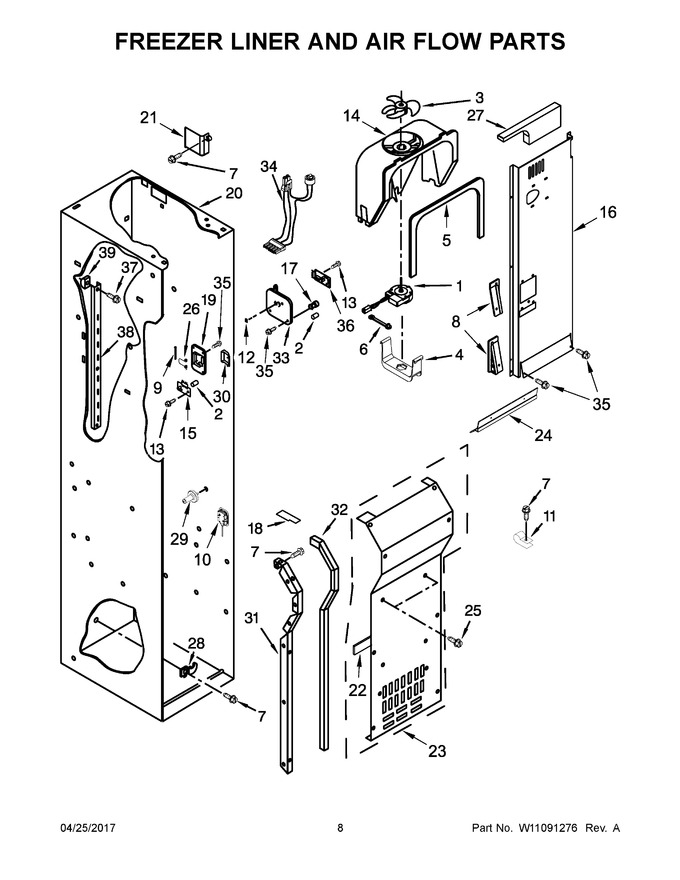

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11671461 | Motor, Fan (Replaces: W10436861) |
|
Immediately | $ 185.87 | ||||
| 2 | 2198665 | Tube, Circuit Board |
|
$ 21.52 | |||||
| 3 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 4 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 21.60 | |||||
| 5 | WP2302817 | Gasket, Scroll Assembly (Replaces: 2302816) |
|
$ 90.94 | |||||
| 6 | W11671528 | Grommet, Motor (Replaces: W10321090) |
|
- | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 8 | 2259465 | Wedge, Air Duct (left Hand) |
|
- | |||||
| 9 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 16.79 | |||||
| 10 | W11683242 | Assembly, Led Module (Replaces: W10843339) |
|
Immediately | $ 300.56 | ||||
| 11 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 12 | 2255563 | Slide, Icemaker Shut Off |
|
$ 75.36 | |||||
| 13 | 2006254 | Screw (Replaces: 489214) |
|
$ 12.41 | |||||
| 14 | W11254898 | Scroll, Fan (Replaces: 2182119) |
|
Immediately | $ 305.49 | ||||
| 15 | W11629974 | Board, Emitter Circuit (Replaces: W10193840) |
|
Immediately | $ 379.01 | ||||
| 16 | 2307773 | Duct, Air |
|
- | |||||
| 17 | WP2198643 | Lens, Receiver (Replaces: 2198643) |
|
$ 7.73 | |||||
| 18 | 2209066 | Block, Fan Scroll (left Hand) |
|
- | |||||
| 19 | WP2215650 | Cover, Emitter (Replaces: 2215650) |
|
$ 191.68 | |||||
| 20 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 21 | 2259025 | Cover, Air Outlet |
|
$ 83.12 | |||||
| 22 | W11318239 | Gasket, Evaporator Cover (Replaces: W10581987) |
|
- | |||||
| 23 | W10813093 | Assembly, Evaporator Cover |
|
- | |||||
| 24 | 2302849 | Support, Air Duct |
|
- | |||||
| 25 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 26 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 82.29 | |||||
| 27 | 2309282 | Deflector, Air Duct |
|
- | |||||
| 28 | 1112260 | Support, Evaporator |
|
- | |||||
| 29 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- | |||||
| 30 | WP2198633 | Flipper, Shut Off (Replaces: 2198633) |
|
Immediately | $ 45.61 | ||||
| 31 | 2221107 | Rail, Evaporator Cover (left Hand) |
|
- | |||||
| 32 | 2220904 | Gasket, Evaporator Cover |
|
$ 21.20 | |||||
| 33 | 2259493 | Cover, Receiver |
|
$ 85.17 | |||||
| 34 | W11676572 | Harness, Bi-metal Wire (Replaces: W10482187) |
|
$ 118.07 | |||||
| 35 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 36 | W11629974 | Board, Receiver Circuit (Replaces: W10290817) |
|
Immediately | $ 379.01 | ||||
| 37 | W10808292 | Screw |
|
- | |||||
| 38 | WP2259032 | Ladder, Shelf (Replaces: 2259032) |
|
$ 72.92 | |||||
| 39 | 2259397 | Support, Ladder Screw |
|
- | |||||
| 18A | 2209481 | Block, Fan Scroll (right Hand) |
|
- | |||||
| 31A | 2259355 | Rail, Evaporator Cover (right Hand) |
|
$ 113.89 | |||||
| 8A | 2259464 | Wedge, Air Duct (right Hand) |
|
$ 85.84 |
