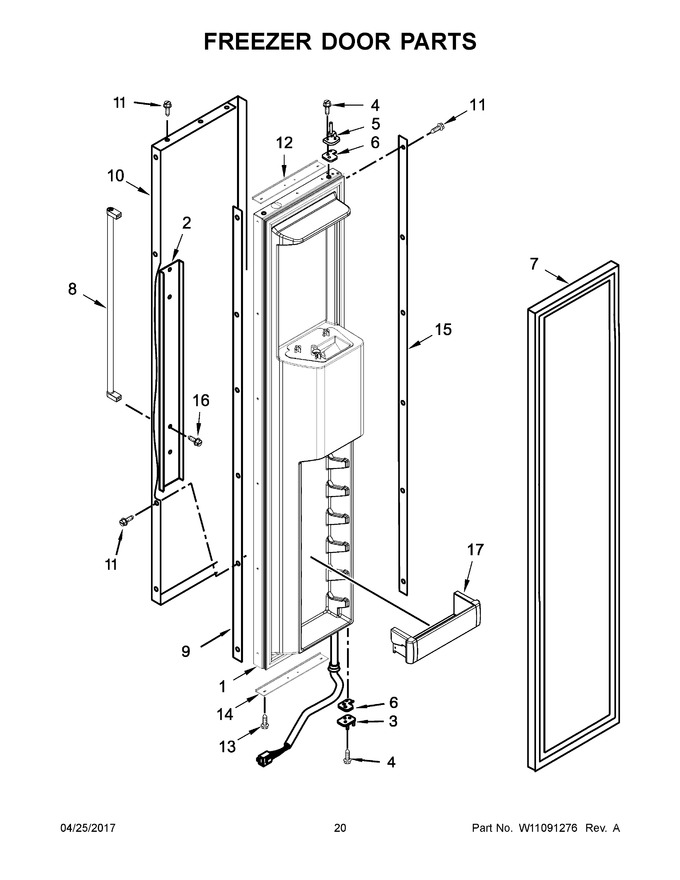

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10800791		Door, Freezer   (Replaces: W10769019)				$ 1,143.38
2	W10127710		Plate, Handle Door			Immediately	$ 23.35
3	W11752085		Assembly, Hinge (bottom)   (Replaces: 2302879)				$ 56.76
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
5	W11673500		Assembly, Hinge (top)   (Replaces: W10485980)			Immediately	$ 117.33
6	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
7	W10800803		Gasket, Door (grey)   (Replaces: W10761963)		Appelez-nous	-
8	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 195.04
9	W10758113		Spacer, Handle Side Door		Appelez-nous	-
10	W10800796		Skin, Door (stainless)   (Replaces: W10756216)				$ 962.19
11	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
12	W10758109		Spacer, Door Skin (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.42
14	W10758111		Spacer, Door Skin Bottom		Appelez-nous	-
15	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
17	W10323601		Bin, Door				$ 82.97
