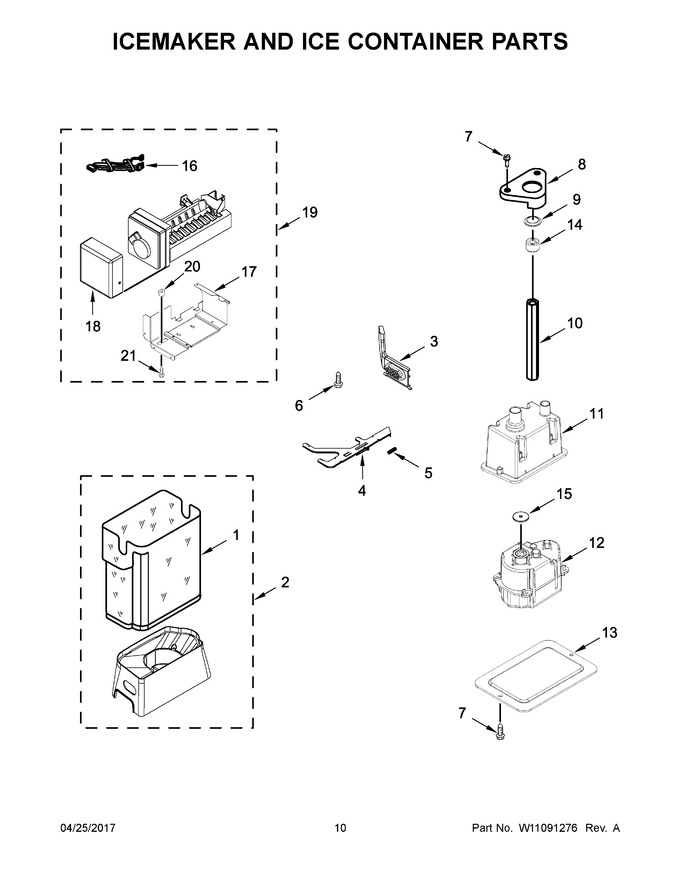

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10134781		Bin, Lower Crusher				$ 129.53
2	W10768485		Assembly, Ice Container				$ 320.53
3	W10749207		Button, Bin				$ 62.73
4	W10134784		Latch, Bin		Appelez-nous	-
5	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 6.80
6	2198671		Screw (stainless)				$ 9.83
7	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
8	WP2188919		Clip, Shaft   (Replaces: 2188919)				$ 6.80
9	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 11.31
10	W11841865		Shaft, Drive   (Replaces: 2318030)			Immediately	$ 103.73
11	W11404931		Enclosure, Motor   (Replaces: 2318011)			Immediately	$ 61.66
12	2315547		Motor, Dispenser		Appelez-nous	-
13	2318028		Cover				$ 97.01
14	WP2315559		Sleeve, Bearing   (Replaces: 2315559)				$ 76.87
15	WPW10254073		Washer   (Replaces: W10254073)			Immediately	$ 9.55
16	W10508670		Assembly, Icemaker Wire		Appelez-nous	-
17	2300167		Bracket, Icemaker Mounting		Appelez-nous	-
18	WPW10289690		Cover, Icemaker   (Replaces: W10289690)			Immediately	$ 7.94
19	W11306283		Assembly, Icemaker   (Replaces: W10774433)				$ 223.29
20	2252354		Spacer		Appelez-nous	-
21	WP489474		Screw   (Replaces: 489474)			Immediately	$ 7.70

    View Diagram in Separate Window       Print Part List
