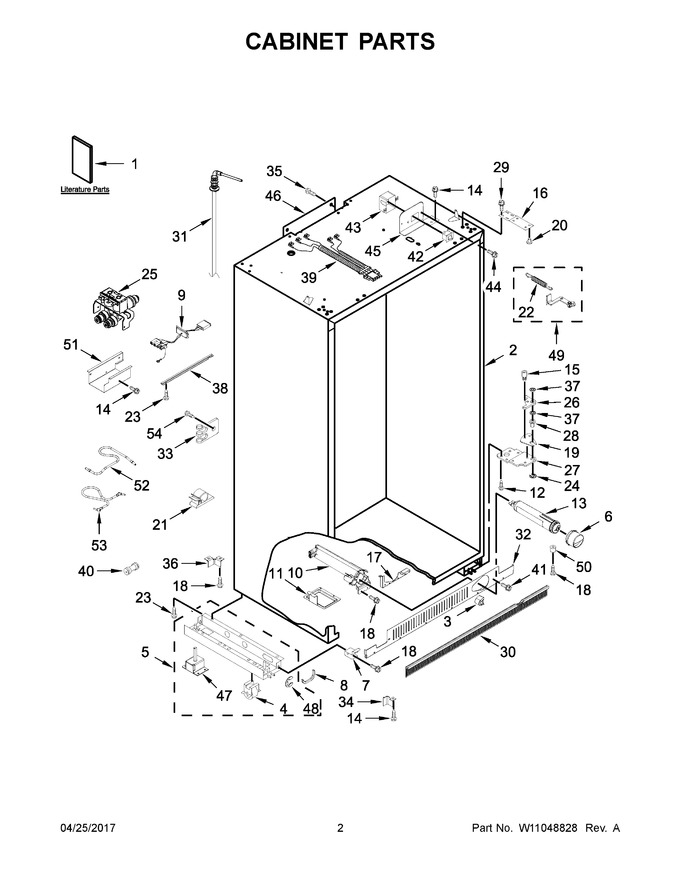

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10763009 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 68.78 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 40.81 | |||||
| 5 | W10860229 | Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
$ 343.65 | |||||
| 6 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 45.61 | ||||
| 7 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 38.93 | |||||
| 8 | 2307584 | Grommet, Crossover Tube |
|
$ 21.06 | |||||
| 9 | W10279391 | Assembly, Smart Valve Wire |
|
$ 120.77 | |||||
| 10 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 243.77 | ||||
| 11 | 2318189 | Tray, Filter Drip |
|
$ 133.86 | |||||
| 12 | 3400525 | Screw |
|
$ 12.83 | |||||
| 13 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 14 | 00487294 | Screw (Replaces: 487294) |
|
$ 157.58 | |||||
| 15 | W11769878 | Screw (Replaces: 3400230) |
|
$ 11.49 | |||||
| 16 | 2257644 | Hinge, Top |
|
$ 160.18 | |||||
| 17 | W11755873 | Bracket, Filter (Replaces: W10674648) |
|
$ 72.30 | |||||
| 18 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 19 | WP2004994 | Lock, Bushing (Replaces: 2004994) |
|
Immediately | $ 7.55 | ||||
| 20 | W11500952 | Bushing, Top Hinge (Replaces: W10484913) |
|
Immediately | $ 31.27 | ||||
| 21 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 7.35 | |||||
| 22 | W11805224 | Spring, Door Closure (green) (Replaces: 2221242) |
|
- | |||||
| 23 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 24 | WP489236 | Ring, Bushing Retaining (Replaces: 2005008) |
|
Immediately | $ 11.50 | ||||
| 25 | W11243758 | Valve, Inlet (Replaces: W10820321) |
|
Immediately | $ 274.73 | ||||
| 26 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 34.45 | ||||
| 27 | W10527053 | Hinge, Bottom (left Hand) (Replaces: 2006779) |
|
$ 123.96 | |||||
| 28 | WP2302876 | Bushing, Adjustable (Replaces: 2302876) |
|
Immediately | $ 81.65 | ||||
| 29 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 13.30 | ||||
| 30 | W10859915 | Skirt, Bottom Grille (Replaces: W10188551) |
|
$ 224.36 | |||||
| 31 | W11212166 | Fitting, Water (Replaces: W10357286) |
|
Immediately | $ 36.84 | ||||
| 32 | W11739148 | Grille, Bottom (black) (Replaces: W10182718) |
|
$ 193.13 | |||||
| 33 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 34 | 2006556 | Bracket, Support Base (front) (right Hand) |
|
$ 33.48 | |||||
| 35 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 36 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 37 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 38 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 39 | W10780213 | Assembly, Switch Wire |
|
$ 117.82 | |||||
| 40 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 33.29 | ||||
| 41 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 42 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 43 | 2215938 | Cover, Switch |
|
$ 85.30 | |||||
| 44 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 10.68 | ||||
| 45 | W10741112 | Bracket, Switch (left Hand) |
|
$ 60.63 | |||||
| 46 | 2215612 | Cover, Air Duct |
|
- | |||||
| 47 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 180.06 | ||||
| 48 | 2006841 | Ring, Retainer |
|
$ 83.39 | |||||
| 49 | WPW10121046 | Assembly, Cam (left Hand) (Replaces: W10121046) |
|
Immediately | $ 75.34 | ||||
| 50 | 2005433 | Spacer |
|
$ 21.00 | |||||
| 51 | 2320601 | Shield, Water Valve |
|
$ 108.14 | |||||
| 52 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 61.10 | |||||
| 53 | W11533506 | Tube, Filter Outlet (Replaces: W10683737) |
|
$ 29.84 | |||||
| 54 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 1A | W10859715 | Energy Guide |
|
- | |||||
| 1B | W10910733 | Tech Sheet (english) |
|
- | |||||
| 1C | W10910734 | Tech Sheet (french) |
|
- | |||||
| 1D | W10762997 | Wiring Diagram |
|
- | |||||
| 1E | W10763010 | Installation Instructions |
|
- | |||||
| 27A | WP2006780 | Hinge, Bottom (right Hand) (Replaces: 2006780) |
|
$ 269.40 | |||||
| 34A | 2006616 | Bracket, Support Base (front) (left Hand) |
|
$ 82.38 | |||||
| 42A | W11457217 | Switch, Rocker Arm (freezer) (Replaces: 1115373) |
|
$ 36.08 | |||||
| 45A | W10741111 | Bracket, Switch (right Hand) |
|
$ 60.63 | |||||
| 49A | WP2307857 | Assembly, Cam (right Hand) (Replaces: 2307857) |
|
Immediately | $ 71.37 | ||||
| 5A | W10860448 | Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
Immediately | $ 344.70 |
