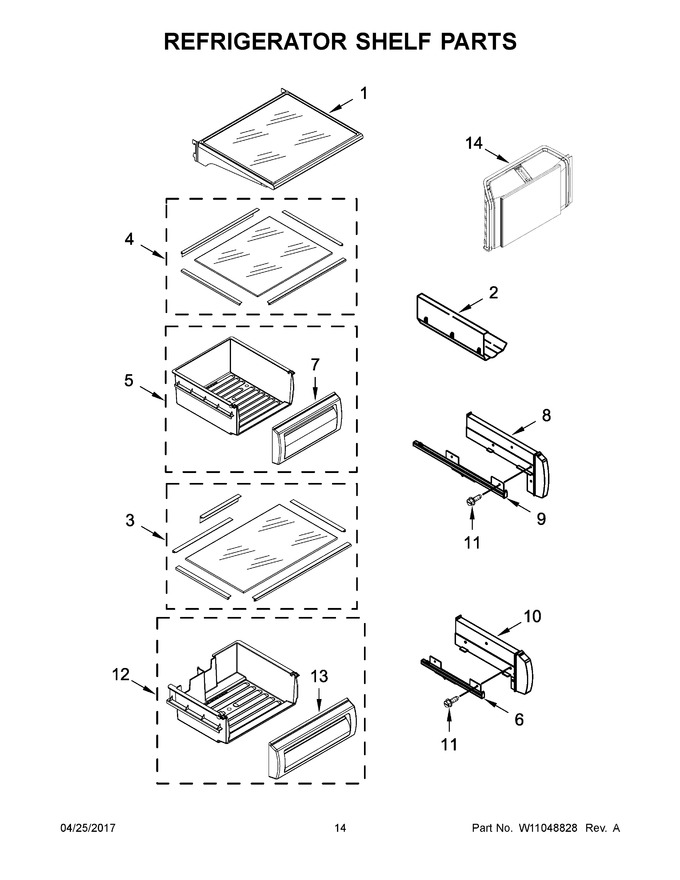

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10818733 | Assembly, Fixed Shelf (Replaces: W10568585) |
|
$ 257.24 | |||||
| 2 | W10701859 | Rack, Wine |
|
$ 19.38 | |||||
| 3 | WPW10556313 | Assembly, Meat Pan Cover (Replaces: W10556313) |
|
$ 245.15 | |||||
| 4 | W10556776 | Assembly, Crisper Cover |
|
- | |||||
| 5 | W10407625 | Assembly, Crisper Pan |
|
$ 160.31 | |||||
| 6 | 2302954 | Slide, Meat Pan (left Hand) |
|
$ 309.14 | |||||
| 7 | W10407625 | Front, Crisper Pan (Replaces: 2256249) |
|
$ 160.31 | |||||
| 8 | 2256223 | Spacer, Crisper (left Hand) |
|
$ 76.04 | |||||
| 9 | 2302956 | Slide, Crisper (left Hand) |
|
$ 268.86 | |||||
| 10 | 2256243 | Spacer, Meat Pan (left Hand) |
|
$ 74.74 | |||||
| 11 | WP8533928 | Screw (left Hand) (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 12 | W10407628 | Assembly, Meat Pan |
|
$ 153.84 | |||||
| 13 | WP2256367 | Assembly, Pan Front (Replaces: 2256367) |
|
$ 164.48 | |||||
| 14 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 15.44 | ||||
| 10A | 2256244 | Spacer, Meat Pan (right Hand) |
|
$ 93.33 | |||||
| 11A | W11830745 | Screw (stainless) (right Hand) (Replaces: 8533929) |
|
- | |||||
| 6A | 2302955 | Slide, Meat Pan (right Hand) |
|
$ 308.86 | |||||
| 8A | 2256222 | Spacer, Crisper (right Hand) |
|
$ 80.32 | |||||
| 9A | 2302957 | Slide, Crisper (right Hand) |
|
$ 205.50 |
