SELECT A DIAGRAM
New Model Search:

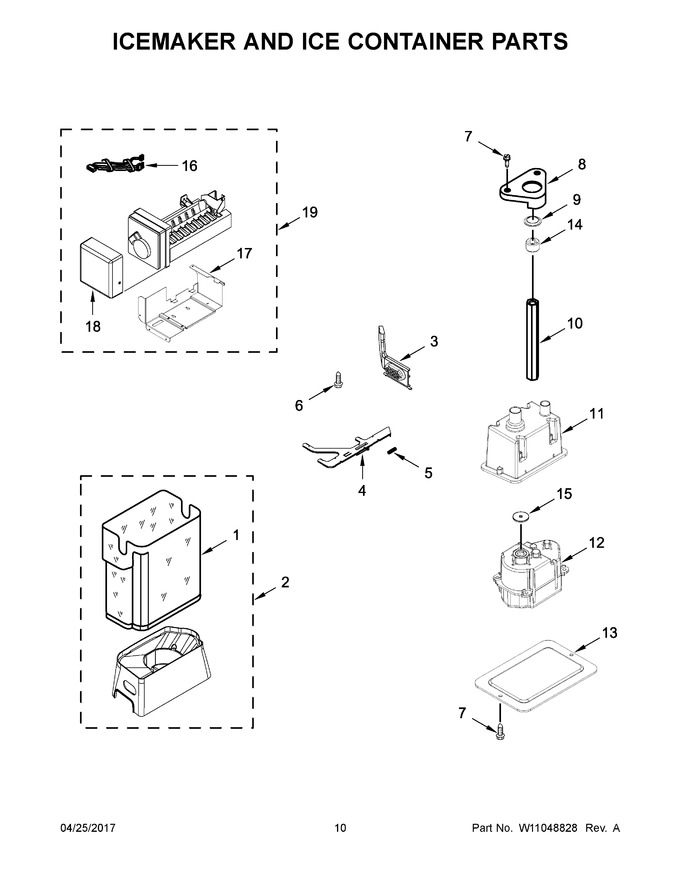

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2222970 | Bin, Ice (Replaces: 2222970) |
|
Immediately | $ 236.39 | ||||
| 2 | W10769145 | Assembly, Ice Container |
|
$ 337.94 | |||||
| 3 | W10749207 | Button, Bin |
|
$ 62.73 | |||||
| 4 | W10134785 | Latch, Bin |
|
$ 99.86 | |||||
| 5 | WP2198608 | Spring, Latch (Replaces: 2198608) |
|
$ 6.80 | |||||
| 6 | 2198671 | Screw (stainless) |
|
$ 9.83 | |||||
| 7 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 8 | WP2188919 | Clip, Shaft (Replaces: 2188919) |
|
$ 6.80 | |||||
| 9 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 11.31 | ||||
| 10 | W11841865 | Shaft, Drive (Replaces: 2318030) |
|
Immediately | $ 103.73 | ||||
| 11 | W11404931 | Enclosure, Motor (Replaces: 2318011) |
|
Immediately | $ 61.66 | ||||
| 12 | 2315547 | Motor, Dispenser |
|
- | |||||
| 13 | 2318028 | Cover |
|
$ 97.01 | |||||
| 14 | WP2315559 | Sleeve, Bearing (Replaces: 2315559) |
|
$ 76.87 | |||||
| 15 | WPW10254073 | Washer (Replaces: W10254073) |
|
Immediately | $ 9.55 | ||||
| 16 | W10508659 | Assembly, Icemaker Wire |
|
$ 120.77 | |||||
| 17 | 2252228 | Bracket, Icemaker Mounting |
|
- | |||||
| 18 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
$ 7.94 | |||||
| 19 | W11087434 | Assembly, Icemaker (Replaces: W10774434) |
|
Immediately | $ 281.31 |
