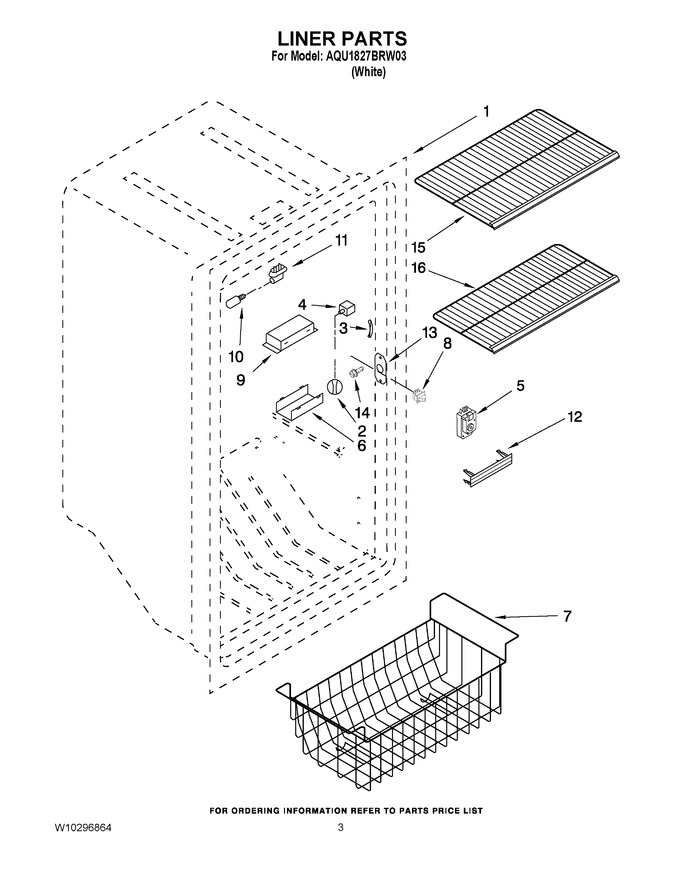

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 4390619 | Control Knob |
|
- | |||||
| 3 | WP2196003 | Sleeve (Replaces: 8210246) |
|
$ 7.52 | |||||
| 4 | WP4-83053-003 | Thermostat (Replaces: 8210311) |
|
$ 229.46 | |||||
| 5 | WP3-81329 | Timer, Defrost (Replaces: 4357124) |
|
Immediately | $ 179.23 | ||||
| 6 | 4390743 | Light Shield |
|
- | |||||
| 7 | 4390621 | Basket |
|
- | |||||
| 8 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 35.18 | ||||
| 9 | W10135693 | Bracket, Light |
|
- | |||||
| 10 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 10.67 | ||||
| 11 | WP3-82393-001 | Socket, Light (Replaces: 8210350) |
|
$ 101.46 | |||||
| 12 | WP3-80414-103 | Vent Plug (Replaces: 4357295) |
|
$ 12.15 | |||||
| 13 | 1-81154 | Plate, Mounting (Replaces: 4357041) |
|
$ 13.50 | |||||
| 14 | W11233072 | Screw (Replaces: 4357043) |
|
Immediately | $ 13.25 | ||||
| 15 | WP4-60638-001 | Shelf, Upper Wire (Replaces: 8210436) |
|
$ 129.92 | |||||
| 16 | 8210437 | Shelf, Lower Wire |
|
- |
