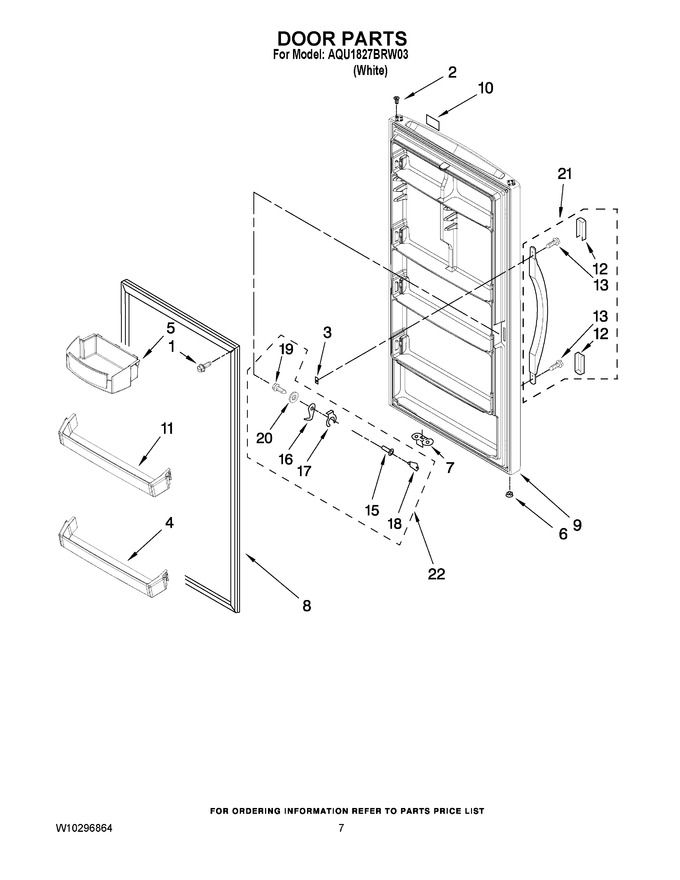

04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw   (Replaces: 4357290)				$ 19.84
2	4390659		Hinge, Bushing		Appelez-nous	-
3	4390680		Anchor, Screw		Appelez-nous	-
4	W10134983		Rail, Door (gallon)		Appelez-nous	-
5	W10134833		Bin- Door		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 10.21
7	4390695		Door Stop		Appelez-nous	-
8	WP4-65151-004		Door Gasket   (Replaces: 8210341)				$ 344.65
9	W10296977		Door Assy		Appelez-nous	-
10	68001748		Nameplate		Appelez-nous	-
11	8210397		Rail, Door		Appelez-nous	-
12	12273507		Trim, Handle		Appelez-nous	-
13	WPW10348409		Screw   (Replaces: 3369051)			Immediately	$ 7.38
15	4357145		Lock, Body   (Replaces: 4356839)				$ 25.01
16	4357224		Lock-bolt		Appelez-nous	-
17	4356842		Spring Clip				$ 12.24
18	WP4356840		Key   (Replaces: 4356840)				$ 10.15
19	WP489478		Screw   (Replaces: 4356843)				$ 7.36
20	4356992		Washer		Appelez-nous	-
21	R0131138		Handle Assembly (includes Items 12 & 13)		Appelez-nous	-
22	4357145		Lock Assembly (includes Items 15, 16, 17, 18, 19 & 20)				$ 25.01
