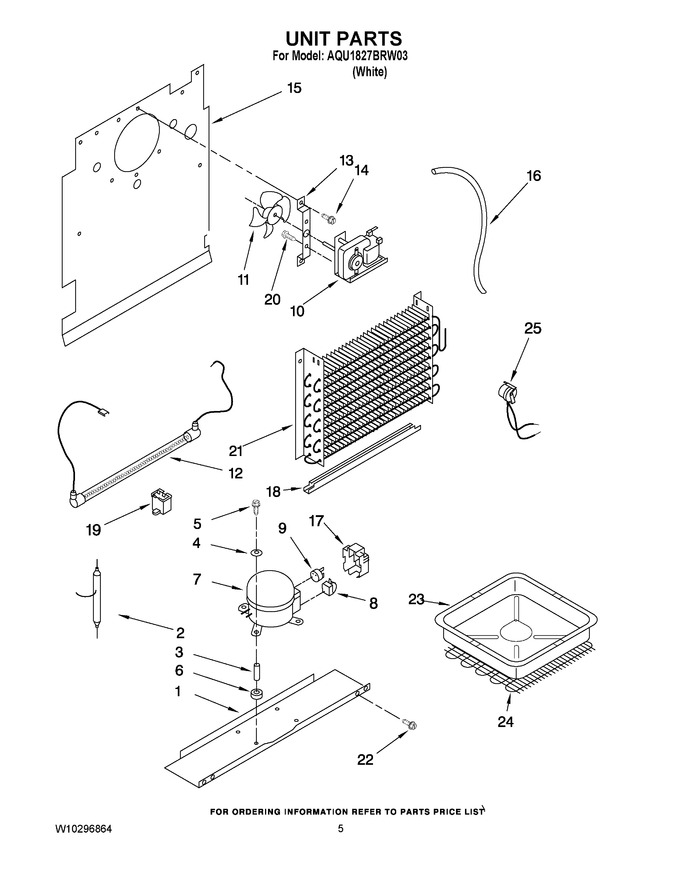

03 - Unit Parts
04 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4357257 | Pan, Compressor Mounting |
|
- | |||||
| 2 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 3 | 4356846 | Sleeve, Grommet |
|
$ 13.50 | |||||
| 4 | 4356847 | Washer |
|
- | |||||
| 5 | 8210220 | Screw, Compressor Mounting |
|
- | |||||
| 6 | 4356335 | Grommet |
|
- | |||||
| 7 | W10309994 | Compressor (includes Items 6, 8, 9, 17 & 18) (Replaces: 4356775) |
|
Immediately | $ 579.20 | ||||
| 8 | 4356738 | Relay |
|
$ 53.17 | |||||
| 9 | 2-34286-021 | Overload (Replaces: 4356776) |
|
$ 129.90 | |||||
| 10 | 4357004 | Motor, Fan |
|
- | |||||
| 11 | WPW10445742 | Blade, Fan (Replaces: 4356920) |
|
Immediately | $ 9.50 | ||||
| 12 | W11175809 | Heater, Defrost (Replaces: W10179594) |
|
Immediately | $ 165.70 | ||||
| 13 | 2-80028-101 | Bracket, Motor (Replaces: 4357129) |
|
$ 88.81 | |||||
| 14 | 60001022 | Screw (Replaces: 4356943) |
|
$ 59.77 | |||||
| 15 | 4357123 | Plate, Evaporator Mounting |
|
- | |||||
| 16 | 4357263 | Heat Exchanger |
|
$ 123.66 | |||||
| 17 | 4356777 | Cover |
|
- | |||||
| 18 | W10164624 | Shield, Heater |
|
- | |||||
| 19 | 3-35956-013 | Capacitor (Replaces: 8210224) |
|
$ 109.01 | |||||
| 20 | WP3400094 | Screw (Replaces: 4356970) |
|
$ 8.33 | |||||
| 21 | WP4-81546 | Evaporator (Replaces: 4357244) |
|
$ 404.47 | |||||
| 22 | W10134902 | Screw |
|
- | |||||
| 23 | W10164623 | Pan, Drain |
|
- | |||||
| 24 | W10451951 | Condenser (Replaces: 8210248) |
|
$ 270.66 | |||||
| 25 | WP1-81801-001 | Bi-metal Defrost (Replaces: 8210253) |
|
Immediately | $ 116.88 | ||||
| NI | N/P | Refrigerant Charge (6.9 Oz. (r-134a)) |
|
- |
