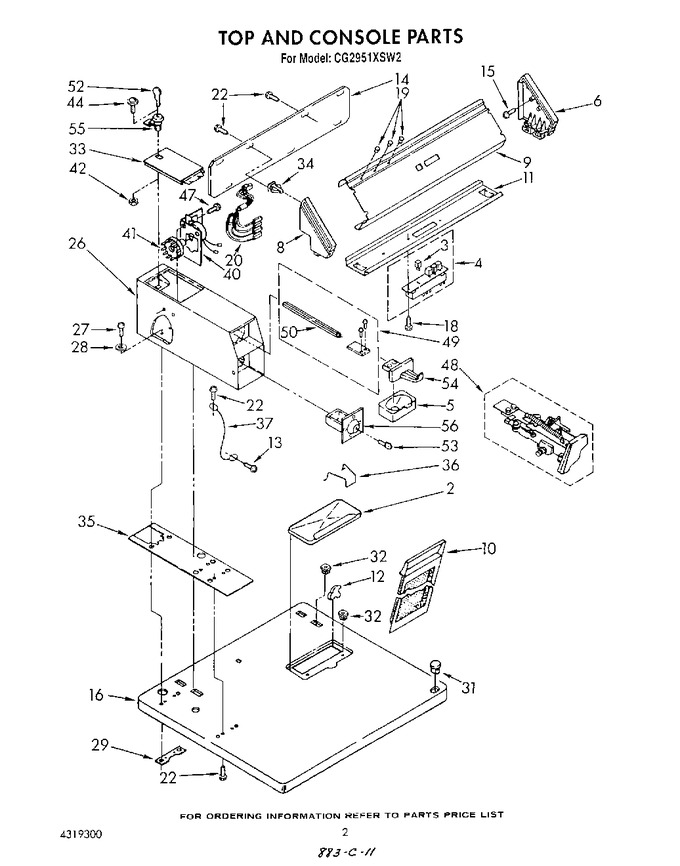

02 - Top And Console


03 - Cabinet


04 - Bulkhead , Lit/optional


05 - 4319351 Burner


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	689310		Cover, Lint Screen (almond)		Appelez-nous	-
2	688150		Cover, Lint Screen (white)		Appelez-nous	-
3	3348587		Button (4)				$ 12.40
4	WPW10330137		Switch, Pushbutton   (Replaces: 697558)			Immediately	$ 306.54
5	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 70.12
6	63795		Cap, End. (r.h.)				$ 14.10
8	3347710		End Cap (l.h.)		Appelez-nous	-
9	3387362		Panel, Control		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 690634)			Immediately	$ 37.72
11	4319335		Bracket, Control		Appelez-nous	-
12	WPW10044470		Hinge, Lint Lid (r.h.)   (Replaces: 339229)				$ 7.30
12	WPW10044480		Hinge, Lint Lid (l.h.)   (Replaces: 339230)				$ 7.30
13	339805		Screw, 10-32 X 3/16				$ 12.65
14	4319339		Panel, Rear		Appelez-nous	-
15	355326		Screw, 13/16 X 5/8 (4)		Appelez-nous	-
16	3390465		Top (almond)		Appelez-nous	-
16	3390464		Top (white)		Appelez-nous	-
18	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 10.68
19	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 11.83
20	3388650		Lights, Indicator		Appelez-nous	-
22	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
26	4319336		Case, Meter (white)		Appelez-nous	-
26	4319346		Meter Case (almond)		Appelez-nous	-
27	4319338		Bolt, 5/16-24 X 1		Appelez-nous	-
28	4319337		Washer, 5/16		Appelez-nous	-
29	3347825		Plate & Nut Assembly		Appelez-nous	-
31	387371		Plug, Hole Lock				$ 11.36
32	98460		Nut, Push-in (2)				$ 12.07
33	W11283272		Door, Service (white)   (Replaces: 4319340)				$ 100.05
33	4319341		Door, Service (almond)		Appelez-nous	-
34	689559		Nut, Push-in		Appelez-nous	-
35	WP3954812		Cushion, Console   (Replaces: 3348850)				$ 29.39
36	3352295		Guide, Drawer		Appelez-nous	-
37	690853		Wire, Ground		Appelez-nous	-
40	279737		Timer, 60 Hz. (incl. 4 Pin Cam)   (Replaces: 3387975)			Immediately	$ 344.67
41	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 7.87
41	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 31.07
41	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 7.91
42	4319352		Nut, Cage		Appelez-nous	-
44	358409		Screw & Washer		Appelez-nous	-
47	339805		Screw, 10-32 X 3/16				$ 12.65
