SELECT A DIAGRAM

02 - Top And Console


03 - Cabinet

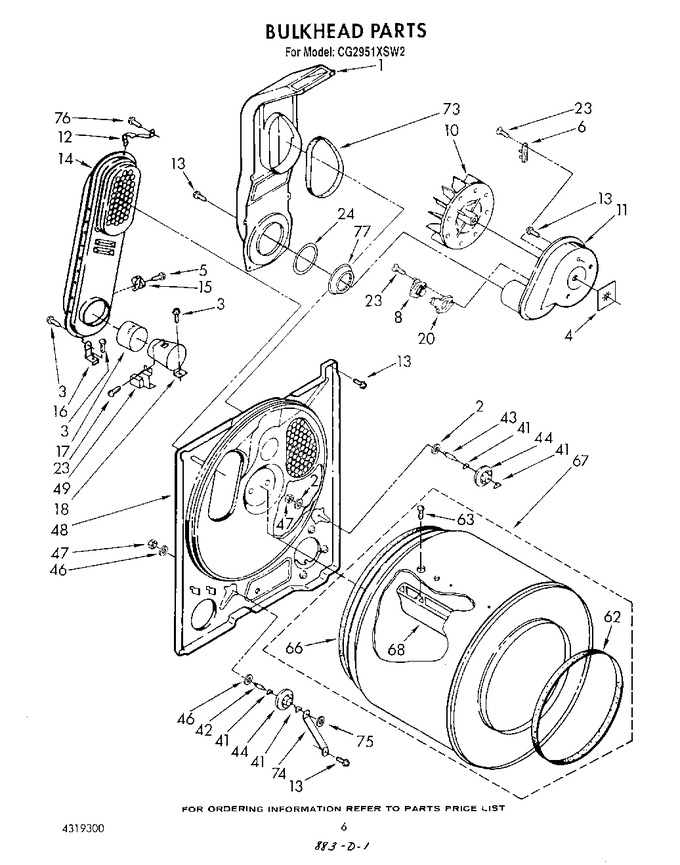

04 - Bulkhead , Lit/optional


05 - 4319351 Burner


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279505		Lint Chute Assembly   (Replaces: 4319320)				$ 285.97
2	339492		Washer, Support		Appelez-nous	-
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.62
4	3392133		Seal, Blower Wheel		Appelez-nous	-
5	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
6	WP3392519		Fuse, Thermal   (Replaces: 3392519)			Immediately	$ 22.46
8	AT022		Thermostat, Operating 150of (65.6oc) 341146 (alt.)   (Replaces: 660039)			Immediately	$ 27.28
10	WP694089		Wheel, Blower (includes Illus. No. 4)   (Replaces: 694089)			Immediately	$ 33.89
11	4319317		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 4319315)				$ 13.55
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
14	279900		Box, Heater   (Replaces: 4319314)				$ 325.42
15	660036		Thermostat, High Limit 205of (96oc) 341196 (alt.)		Appelez-nous	-
16	337445		Support, Heater Box (2)		Appelez-nous	-
17	279900		Collar, Funnel   (Replaces: 337450)				$ 325.42
18	279900		Funnel, Burner   (Replaces: 347389)				$ 325.42
20	61894		Heater, Thermostat				$ 37.38
23	WP489069		Screw, 8-18 X 1/2   (Replaces: 4319316)			Immediately	$ 7.56
24	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 17.23
41	WPW10512946		Ring, Tri   (Replaces: 4319305)			Immediately	$ 8.71
42	WPW10359270		Shaft, L.h.   (Replaces: 4319306)			Immediately	$ 65.44
43	WPW10359269		Shaft, R.h.   (Replaces: 4319304)			Immediately	$ 51.09
44	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 26.58
46	4319307		Washer, Support (2)		Appelez-nous	-
47	120377		Nut, 3/8-16		Appelez-nous	-
48	4319303		Bulkhead		Appelez-nous	-
49	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
62	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 118.67
63	4319324		Screw, 11-16 X 7/8		Appelez-nous	-
66	239087		Seal, Rear   (Replaces: 4319323)			Immediately	$ 57.26
67	3396775		Drum Assembly   (Replaces: 4319322)				$ 317.73
68	WP342847		Baffle, Drum   (Replaces: 342847)				$ 138.90
73	WP339956		Seal   (Replaces: 4319308)			Immediately	$ 8.15
74	4319310		Bracket, Support Shaft		Appelez-nous	-
75	WP90296		Clip   (Replaces: 90296)				$ 7.42
76	WP489069		Screw, 8-16 X 1/2   (Replaces: 4319316)			Immediately	$ 7.56
77	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 21.06
	LIT348772		Instructions, Multi-venting		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
	261888		New Avocado		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
	LIT4319300		List, Service Parts		Appelez-nous	-
	LIT692257		Sheet, Top Lock Instruction		Appelez-nous	-
	LIT3392241		Instructions, Installation		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	261891		Golden Harvest (uncut)		Appelez-nous	-
	261889		New Avocado (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	261890		Golden Harvest		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 48.61

    View Diagram in Separate Window       Print Part List
