View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Top And Console

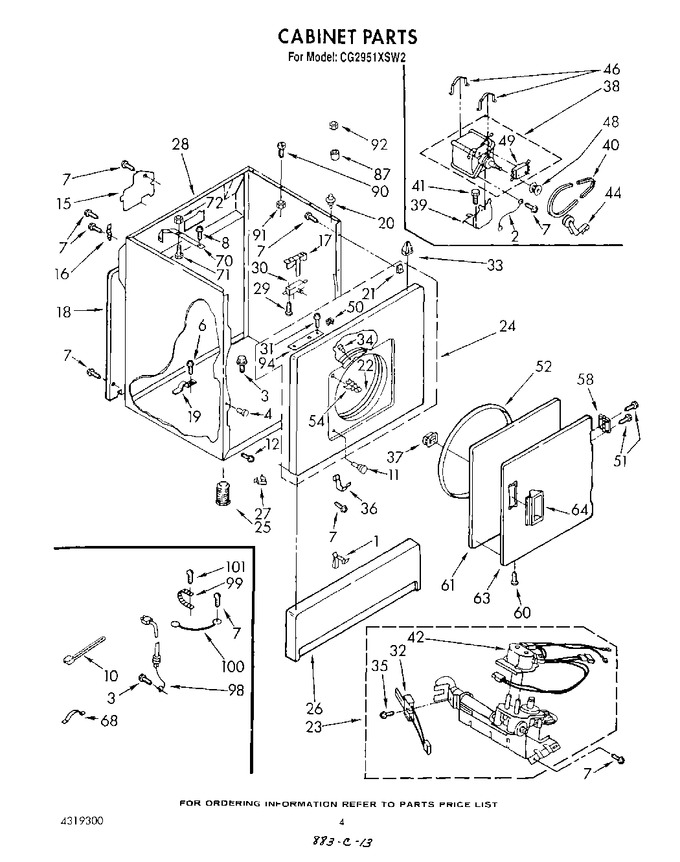

03 - Cabinet
04 - Bulkhead , Lit/optional
05 - 4319351 Burner
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 341776 | Clip, Toe Panel |
|
- | |||||
| 2 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 3 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.62 | ||||
| 4 | 238614 | Bumper |
|
$ 76.31 | |||||
| 6 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.62 | ||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 8 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 4319319) |
|
$ 10.26 | |||||
| 10 | WPW10339879 | Tie, Cable (Replaces: 4319321) |
|
$ 7.47 | |||||
| 11 | 238614 | Bumper |
|
$ 76.31 | |||||
| 12 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 4319344) |
|
Immediately | $ 7.62 | ||||
| 15 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 16 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.39 | |||||
| 17 | WP691581 | Lever, Door Switch (Replaces: 295998) |
|
Immediately | $ 7.64 | ||||
| 18 | 4319345 | Panel, Rear |
|
- | |||||
| 19 | 341029 | Clamp, Pipe (rear) |
|
- | |||||
| 20 | 98669 | Locator, Top (2) |
|
$ 12.03 | |||||
| 20 | 356837 | Locator, Top (1) |
|
- | |||||
| 21 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 22 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 76.91 | ||||
| 23 | 694670 | Burner Assembly (60 Hz.) (refer To Pages 8 & 9 For Further Breakdown) |
|
- | |||||
| 24 | 4319332 | Front Panel Assembly (almond) |
|
- | |||||
| 24 | 4319325 | Front Panel Assembly (white) |
|
- | |||||
| 25 | 49621 | Foot, Plastic (4) (Replaces: 4319350) |
|
Immediately | $ 7.70 | ||||
| 26 | 4319343 | Panel, Toe (almond) |
|
- | |||||
| 26 | 4319342 | Panel, Toe (white) |
|
- | |||||
| 27 | 342601 | Clip, Toe Panel (2) |
|
- | |||||
| 28 | 4319302 | Cabinet (almond) |
|
- | |||||
| 28 | 4319301 | Cabinet (white) |
|
- | |||||
| 29 | WP98129 | Screw (2) (Replaces: 98129) |
|
$ 7.36 | |||||
| 30 | W10820036 | Switch, Door (Replaces: 4319330) |
|
Immediately | $ 27.45 | ||||
| 31 | WP965173 | Screw (Replaces: 4319331) |
|
Immediately | $ 10.68 | ||||
| 32 | 279311 | Ignitor (686590) (alt.) (Replaces: 660991) |
|
Immediately | $ 71.01 | ||||
| 33 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.98 | ||||
| 34 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 21.20 | |||||
| 35 | WPW10366705 | Screw & Washer (Replaces: 686953) |
|
$ 7.09 | |||||
| 36 | WP297092 | Clip, Hinge (2) (Replaces: 297092) |
|
Immediately | $ 8.06 | ||||
| 37 | WP3389441 | Catch, Door Assembly (Replaces: 3389441) |
|
Immediately | $ 6.56 | ||||
| 38 | 279827 | Motor Assembly 60 Hz. (Replaces: 3391888) |
|
Immediately | $ 195.48 | ||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 660997) |
|
Immediately | $ 16.34 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 4319309) |
|
Immediately | $ 12.64 | ||||
| 42 | 279923 | Valve, Gas (complete) 60 Hz. (Replaces: 694054) |
|
Immediately | $ 257.43 | ||||
| 44 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 46 | WP660658 | Clip, Motor (2) 343481 (alt.) (Replaces: 4319313) |
|
$ 7.40 | |||||
| 48 | WP8066184 | Pulley, 60 Hz. (Replaces: 694871) |
|
Immediately | $ 45.92 | ||||
| 49 | 279827 | Switch, Motor Start (Replaces: 337351) |
|
Immediately | $ 195.48 | ||||
| 50 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 8.18 | |||||
| 51 | WP694091 | Screw, Hinge (6) (Replaces: 694091) |
|
$ 6.80 | |||||
| 52 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 50.68 | |||||
| 54 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 58 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 4319328) |
|
$ 8.39 | |||||
| 60 | WP694091 | Screw, Door (8) (Replaces: 694091) |
|
$ 6.80 | |||||
| 61 | 4319326 | Door, Rear |
|
- | |||||
| 63 | 4319327 | Door, Front (white) |
|
- | |||||
| 63 | 4319333 | Door, Front (almond) |
|
- | |||||
| 64 | WP3405184 | Handle, Door (white) (Replaces: 4319329) |
|
$ 71.83 | |||||
| 64 | 4319334 | Handle, Door (almond) |
|
- | |||||
| 68 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 10.48 | |||||
| 70 | 688022 | Bracket, Top Lock |
|
- | |||||
| 71 | 354730 | Bolt, 5/16-18 X 2-3/4 |
|
- | |||||
| 72 | 90984 | Nut, 5/16 |
|
- | |||||
| 87 | 356674 | Wedge, Cone |
|
$ 33.19 | |||||
| 90 | 3400500 | Screw, 1/4-20 X 7/8 (Replaces: 4319311) |
|
Immediately | $ 12.64 | ||||
| 91 | WP487939 | Nut (Replaces: 4319312) |
|
$ 7.76 | |||||
| 92 | 90984 | Nut, 5/16-18 |
|
- | |||||
| 94 | 688021 | Bracket, Front Top Lock |
|
- | |||||
| 98 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 113.96 | |||||
| 99 | 22965 | Strap, Ground |
|
- | |||||
| 100 | 364089 | Wire, Ground |
|
- | |||||
| 101 | 132848 | Screw, 10-24 X 1 |
|
- |
