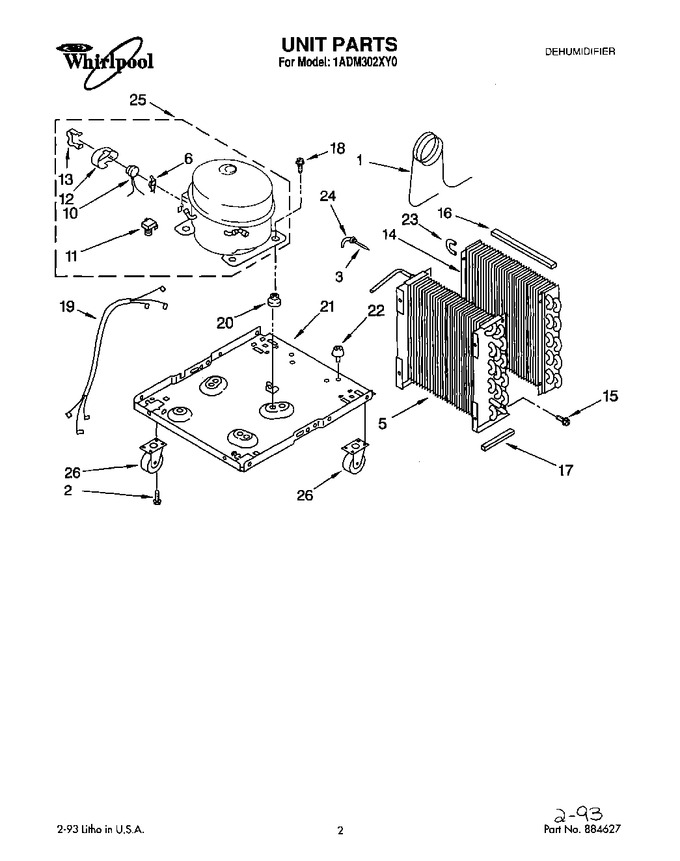

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162185		Tube, Restrictor (length 35.0``)		Appelez-nous	-
2	WPW10141604		Screw   (Replaces: 487871)				$ 8.85
3	1162037		Strainer		Appelez-nous	-
5	1162152		Condenser		Appelez-nous	-
6	549086		Spring, Overload (service)		Appelez-nous	-
10	1158823		Overload (production)		Appelez-nous	-
10	649833		Overload (service)		Appelez-nous	-
11	549339		Relay, Start (service)		Appelez-nous	-
11	1156815		Relay, Start (production)		Appelez-nous	-
12	549336		Cover, Terminal (service)		Appelez-nous	-
12	1157582		Cover, Terminal (production)		Appelez-nous	-
13	938384		Retainer, Cover (production)		Appelez-nous	-
13	549342		Retainer, Cover (service)		Appelez-nous	-
14	1162153		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 3/8 (4)   (Replaces: 488480)			Immediately	$ 8.40
16	1162348		Seal, Evap. Top		Appelez-nous	-
17	1162372		Seal		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	1156748		Grommet (4)		Appelez-nous	-
21	1157588		Base		Appelez-nous	-
22	472577		Foot (2)		Appelez-nous	-
23	855199		Bend, Return (4)		Appelez-nous	-
24	854624		Bend, Return (3)		Appelez-nous	-
25	1156854		Compressor		Appelez-nous	-
26	1159961		Caster (4)		Appelez-nous	-
