SELECT A DIAGRAM

01 - Unit


02 - Airflow And Control Parts


03 - Cabinet Parts

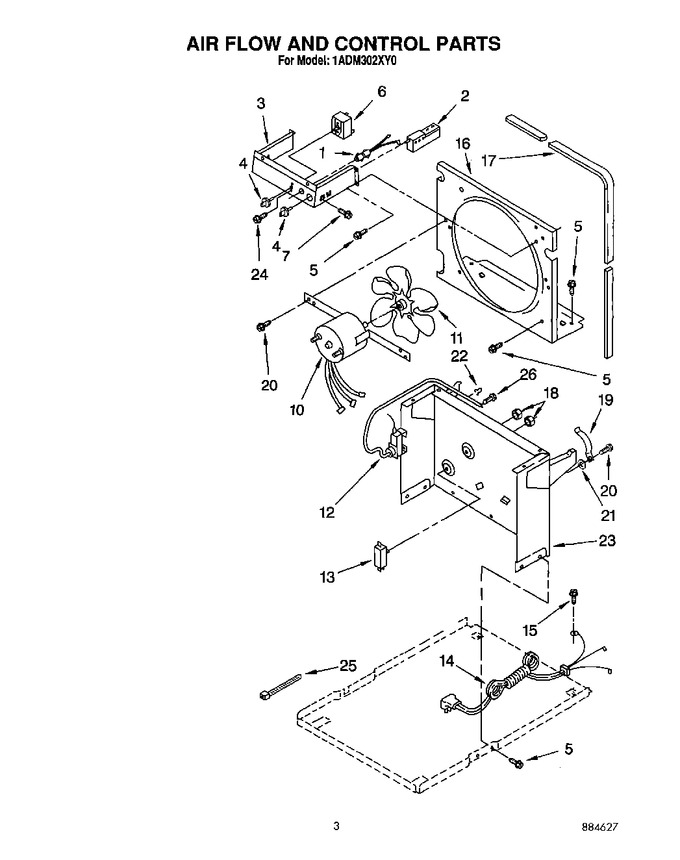

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1158419		Light, Indicator		Appelez-nous	-
2	1162578		Humidistat, Control		Appelez-nous	-
3	951360		Bracket, Control		Appelez-nous	-
4	1162862		Knob, Humidistat Control		Appelez-nous	-
5	488624		Screw, Sm 8 X 3/8		Appelez-nous	-
6	951361		Switch, Rotary		Appelez-nous	-
7	WP3177991		Screw, 8-18x1/4   (Replaces: 1162513)			Immediately	$ 7.55
10	1162314		Motor, Fan		Appelez-nous	-
11	949645		Blade, Fan		Appelez-nous	-
12	1155109		Thermostat, De-icer		Appelez-nous	-
13	999747		Switch, Water Level Control		Appelez-nous	-
14	1160447		Cord, Appliance		Appelez-nous	-
15	WPW10141604		Screw, 8-32 X 5/32   (Replaces: 487871)				$ 8.85
16	998779		Plate, Orifice		Appelez-nous	-
17	1162704		Seal		Appelez-nous	-
18	489001		Palnut, 3/8-32		Appelez-nous	-
19	1161718		Spring, Water Level		Appelez-nous	-
20	WP488163		Screw, Sm 8 X 3/4a   (Replaces: 488248)				$ 7.92
21	489083		Washer, Repair (.030 Thickness)		Appelez-nous	-
21	489029		Washer, Repair (.060 Thickness)		Appelez-nous	-
22	471363		Clamp, Tube To Evaporator Mtg (2)		Appelez-nous	-
23	1163800		Support		Appelez-nous	-
24	488139		Screw		Appelez-nous	-
25	WPW10339879		Tie, Cable (3)   (Replaces: 602851)				$ 8.30
26	WP488234		Screw, 8-32 X 1/4 (2)   (Replaces: 488234)				$ 7.08

    View Diagram in Separate Window       Print Part List
