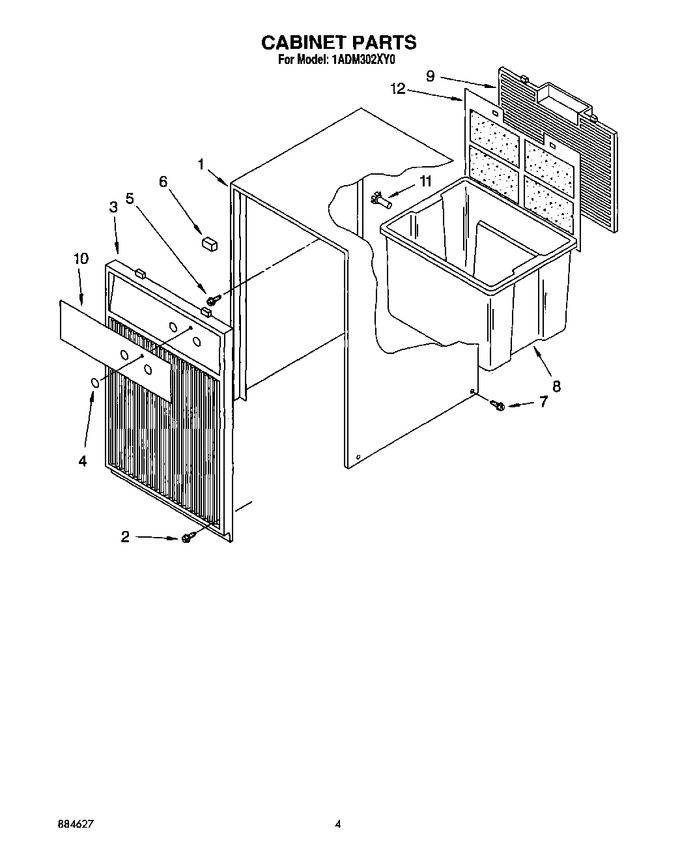

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1160461		Cabinet		Appelez-nous	-
2	WP489069		Screw, No.8 (2)   (Replaces: 489292)			Immediately	$ 8.40
3	1160944		Grille, Front		Appelez-nous	-
4	998846		Lens, Light		Appelez-nous	-
5	WP488729		Screw, Sm 8 X 3/8a   (Replaces: 489073)			Immediately	$ 8.28
6	948584		Spacer, Grille		Appelez-nous	-
7	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
8	1159968		Pan, Condensate		Appelez-nous	-
9	1160444		Grille, Rear		Appelez-nous	-
10	1160945		Escutcheon		Appelez-nous	-
11	998813		Retainer, Pin (rear Grill)		Appelez-nous	-
12	WP16123		Washer, Condensate Pan   (Replaces: 647338)				$ 8.16
12	SF5538		3/8`` Tube O.d.   (Replaces: 978027)				$ 18.65
12	978028		1/2`` Tube O.d.		Appelez-nous	-
12	978029		5/8`` Tube O.d.				$ 93.85
12	978030		3/4`` Tube O.d.				$ 137.25
12	978865		Seal, Ring (access Valve) (20 - Pack)		Appelez-nous	-
12	212643		Permagum, Sealer (4 - 12`` Strips)			Immediately	$ 96.42
12	1159964		Filter, Air		Appelez-nous	-
12	646753		Cup, Condensate Pan		Appelez-nous	-
12	WP978025		1/4`` Tube O.d.   (Replaces: 978025)			Immediately	$ 110.51
12	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
12	799833		Epoxy, Tube (aluminum Repair)		Appelez-nous	-
12	505168		Tape, No Drip (30`) Valve, Access		Appelez-nous	-
12	978026		5/16``tube O.d.			Immediately	$ 134.49
	LIT1159974		Guide, Use And Care		Appelez-nous	-
	LIT884627		List, Repair Parts		Appelez-nous	-
	LIT01160093		Wiring Diagram		Appelez-nous	-
	LIT1159972		Tech Sheet And		Appelez-nous	-
