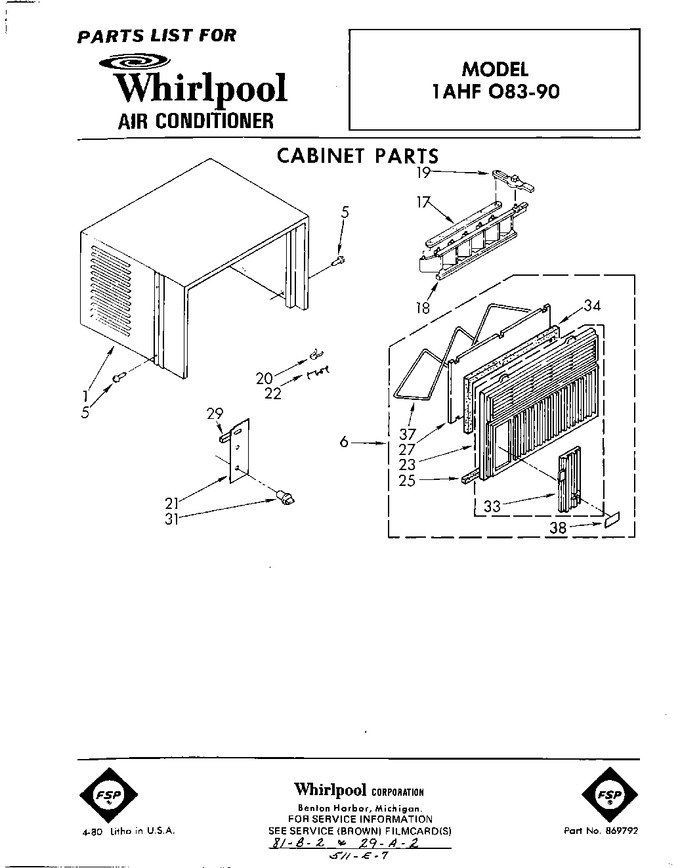

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	856686		Cabinet		Appelez-nous	-
5	WP489128		Screw, 8-32 X 3/8 (8)   (Replaces: 488875)				$ 11.40
6	947638		Cabinet Assembly, Front		Appelez-nous	-
17	641482		Link, Louver		Appelez-nous	-
18	641481		Louver, Vertical		Appelez-nous	-
19	645887		Handle, Louver		Appelez-nous	-
20	641484		Spring, Detent				$ 166.82
21	947636		Plate, Escutcheon		Appelez-nous	-
22	649966		Clip (2)		Appelez-nous	-
23	947372		Front, Frame (includes Illus. 33)		Appelez-nous	-
25	852923		Seal, Front		Appelez-nous	-
27	855246		Filter		Appelez-nous	-
29	470036		Spacer, Escutcheon		Appelez-nous	-
31	947264		Knob, Control (2)		Appelez-nous	-
33	947168		Door, Control		Appelez-nous	-
34	645883		Seal, Top & Sides		Appelez-nous	-
37	646963		Retainer, Filter		Appelez-nous	-
38	947479		Nameplate		Appelez-nous	-
